日本SHOWA正和线路滤波器LF01-4A
日本SHOWA正和线路滤波器LF01-4A
日本SHOWA正和线路滤波器LF01-4A
日本SHOWA正和线路滤波器LF01-4A

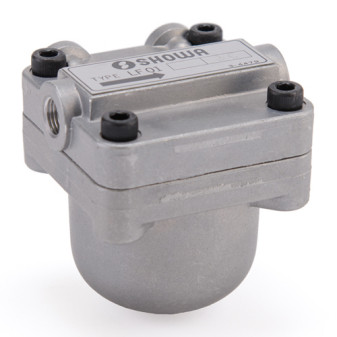

LF01,LF0150 Line Filter
Line filters for resistance and volumetric type lubrication systems
Line filters with a bypass chamber for the volumetric type systems
Easy maintenance
A small capacity line filter for the resistance system and volumetric system (with a bypass chamber) are available.
2 flow directional types are available (L to R or R to L in relation to the mounting face), providing an opportunity to select a model to suit installation requirements.
By simply unscrewing the top bolts, maintenance or filter (element) replacement can be performed with ease.

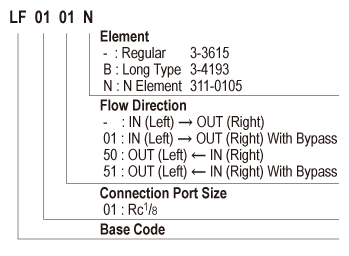

Form code
Specifications
| MODEL CODE | Bypass Chamber Attached | Applicable Lubrication System | Operating Pressure (MPa) | Withstanding Pressure (MPa) | Max Flow Rate (L/min).70m㎡/s | Connection Port Size | ||
| Regular | Long Type | N Element | ||||||
| LF01 LF0150 | None | Resistance Type System | 3 | 4.5 | 1 | 1.5 | (0.2) | Rc1/8 |
※N elements are for intermittent type pumps, therfore the Max Flow Rate indicated is purely for reference purposes.
FILTER SPECIFICATION
| Type of Element | Filter Material | Filtering Surface | Filter Grade | Product Number |
| Regular Element | SUS Mesh | 38c㎡ | 30μm | 3-3615 |
| Long Type Element | SUS Mesh | 98c㎡ | 3-4193 | |
| N Element | PVF | 17c㎡ | 311-0105 |
※Please use N elements when utilizing hand pumps, YMAS, SMA and SMD models.
※In general, clean or replace the filter element every six months, when utilized under standard conditions.

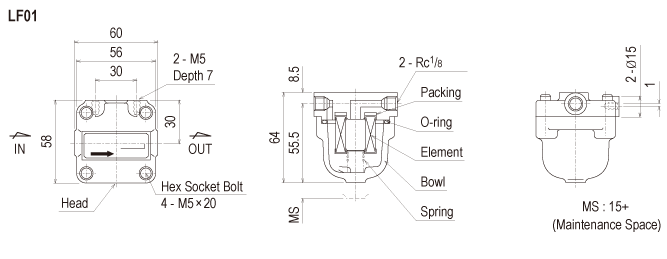

Drawing
