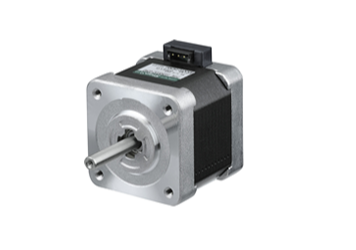

日本SANYO DENKI山洋三相步进电机103H5333-0340
Specifications
Model No.
103H5333-0340
Basic step angle [ º ]
1.2
Motor flange size[mm]
□42
Motor length [mm]
48
Single/Dual shaft
Single shaft
Output shaft
Circular
Holding torque [N∙m]
0.265
Rotor inertia [×10-4kg·m2]
0.065
Rated current [A/phase]
3
Connection type
Connector type
Motor mass [kg]
0.38
Operating temperature range
-10 ～ +50℃
Operating humidity range
20 to 90% RH (non-condensing)
Protection rating
IP40
Download Materials List
Materials Material No. File Size Download Link Catalog CAD 103H5333-0340 316.6 KB Login required
