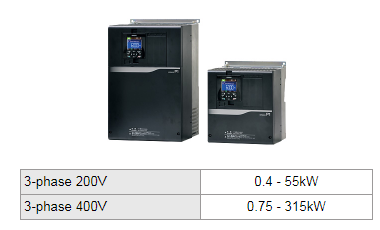

日本日立hitachi变频器SH1-00470-HFCF 18.5KW

Model name(P1-☐☐☐-L)				00044	00080	00104	00156	00228	00330	00460	00600	00800	00930	01240	01530	01850	02290	02950
Applicable motor capacity (4 poles) (kW)*1			VLD	0.75	1.5	2.2	3.7	5.5	7.5	11	15	18.5	22	30	37	45	55	75
			LD	0.75	1.5	2.2	3.7	5.5	7.5	11	15	18.5	22	30	37	45	55	75
			ND	0.4	0.75	1.5	2.2	3.7	5.5	7.5	11	15	18.5	22	30	37	45	55
Output	Rated output current (A)*2		VLD	4.4	8.0	10.4	15.6	22.8	33.0	46.0	60.0	80.0	93.0	124	153	185	229	295
			LD	3.7	6.3	9.4	12.0	19.6	30.0	40.0	56.0	73.0	85.0	113	140	169	210	270
			ND	3.2	5.0	8.0	11.0	17.5	25.0	32.0	46.0	64.0	76.0	95.0	122	146	182	220
	Overload current rating		VLD	110% 60sec / 120% 3sec
			LD	120% 60sec / 150% 3sec
			ND	150% 60sec / 200% 3sec
	Rated output voltage			Three-phase (3 wire) 200 to 240 V (Corresponding to the incoming voltage)
	Rated capacity (kVA)	200V	VLD	1.5	2.7	3.6	5.4	7.8	11.4	15.9	20.7	27.7	32.2	42.9	53.0	64.0	79.3	102
			LD	1.2	2.1	3.2	4.1	6.7	10.3	13.8	19.3	25.2	29.4	39.1	48.4	58.5	72.7	93.5
			ND	1.1	1.7	2.7	3.8	6.0	8.6	11.0	15.9	22.1	26.3	32.9	42.2	50.5	63.0	76.2
		240V	VLD	1.8	3.3	4.3	6.4	9.4	13.7	19.1	24.9	33.2	38.6	51.5	63.6	76.9	95.1	123
			LD	1.5	2.6	3.9	4.9	8.1	12.4	16.6	23.2	30.3	35.3	46.9	58.1	70.2	87.2	112
			ND	1.3	2.0	3.3	4.5	7.2	10.3	13.3	19.1	26.6	31.5	39.4	50.7	60.6	75.6	91.4
Input	Rated input AC voltage*3			Main circuit power supply: Three-phase (3 wire) 200 to 240 V 50Hz/60Hz Control power supply : Single-phase supply 200 to 240 V 50Hz/60Hz
	Permissible AC voltage/ Frequency fluctuation*3			AC voltage: 170 to 264V 50/60Hz, Frequency: ±5%
	Power supply capacity (kVA)*4		VLD	2.0	3.7	4.8	7.1	10.4	15.0	20.9	27.3	36.3	42.2	56.3	69.4	84.0	104	134
			LD	1.7	2.9	4.3	5.5	8.9	13.7	18.2	25.5	33.2	38.6	51.3	63.6	76.7	95.3	123
			ND	1.5	2.3	3.7	5.0	8.0	11.4	14.6	20.9	29.1	34.5	43.1	55.4	66.3	82.6	99.8
Carrier frequency variation*5			VLD	0.5 to 10.0kHz
			LD	0.5 to 12.0kHz
			ND	0.5 to 16.0kHz
Starting torque*6				200%/0.3Hz
Braking	Regenerative Braking			Internal BRD circuit (external discharge resistor value)											Ext. regen. braking unit
Braking	Minimum resistance value (Ω)			50	50	35	35	35	16	10	10	7.5	7.5	5	-	-	-	-
Protective structure				IP20 - UL Open Type
Aprox. weight (kg)				3	3	3	3	3	6	6	6	10	10	10	22	33	33	47

*1
The applicable motor refers to Hitachi standard 3-phase motor (4-pole). To use other motors, be sure to prevent the rated motor current (50Hz) from exceeding the rated output current of the inverter.
*2
Some models require current derating depending on the carrier frequency setting and ambient temperature.
*3
In order to comply with the Low Voltage Directive (VLD), it must be connected to a neutral grounding supply.
- Pollution degree 2 - Overvoltage category 3
*4
The power supply capacity is the value of the rated output current at 220V. The value of the impedance at the supply side changes due to the wiring, breaker, input reactor, etc.
*5
Carrier frequency may be limited in the range according to the use of drive.
*6
The value is specified for the Hitachi standard motor controlled by the sensorless vector control when ND rating.
Torque characteristics may vary by the control system and the use of the motor.

400V class specifications

Model name(P1-☐☐☐-H)				00041	00054	00083	00126	00175	00250	00310	00400	00470	00620	00770	00930	01160	01470	01760	02130	02520	03160
Applicable motor capacity (4 poles) (kW)*1			VLD	1.5	2.2	3.7	5.5	7.5	11	15	18.5	22	30	37	45	55	75	90	110	132	160
			LD	1.5	2.2	3.7	5.5	7.5	11	15	18.5	22	30	37	45	55	75	90	110	132	160
			ND	0.75	1.5	2.2	3.7	5.5	7.5	11	15	18.5	22	30	37	45	55	75	90	110	132
Output	Rated output current (A)*2		VLD	4.1	5.4	8.3	12.6	17.5	25.0	31.0	40.0	47.0	62.0	77.0	93.0	116	147	176	213	252	316
			LD	3.1	4.8	6.7	11.1	16.0	22.0	29.0	37.0	43.0	57.0	70.0	85.0	105	135	160	195	230	290
			ND	2.5	4.0	5.5	9.2	14.8	19.0	25.0	32.0	39.0	48.0	61.0	75.0	91.0	112	150	180	217	260
	Overload current rating		VLD	110% 60sec / 120% 3sec
			LD	120% 60sec / 150% 3sec
			ND	150% 60sec / 200% 3sec
	Rated output voltage			Three-phase (3 wire) 380 to 500 V (Corresponding to the incoming voltage)
	Rated capacity (kVA)	400V	VLD	2.8	3.7	5.7	8.7	12.1	17.3	21.4	27.7	32.5	42.9	53.3	64.4	80.3	102	122	148	175	219
			LD	2.1	3.3	4.6	7.6	11.0	15.2	20.0	25.6	29.7	39.4	48.4	58.8	72.7	93.5	111	135	159	201
			ND	1.7	2.7	3.8	6.3	10.2	13.1	17.3	22.1	27.0	33.2	42.2	51.9	63.0	77.5	104	125	150	180
		500V	VLD	3.5	4.6	7.1	10.9	15.1	21.6	26.8	34.6	40.7	53.6	66.6	80.5	100	127	152	184	218	274
			LD	2.6	4.1	5.8	9.6	13.8	19.0	25.1	32.0	37.2	49.3	60.6	73.6	90.9	117	139	169	199	251
			ND	2.1	3.4	4.7	7.9	12.8	16.4	21.6	27.7	33.7	41.5	52.8	64.9	78.8	96.9	130	156	188	225
Input	Rated input AC voltage*3			Main circuit power supply: Three-phase(3 wire) 380 to 500 V 50Hz/60Hz Control power supply: Single-phase supply 380 to 500 V 50Hz/60Hz
	Permissible AC voltage/ Frequency fluctuation*3			AC voltage:323 to 550V 50/60 Hz, Frequency :±5%
	Power supply capacity (kVA)*4		VLD	3.8	4.9	7.6	11.5	15.9	22.8	28.2	36.3	42.7	56.3	69.9	84.4	105	133	160	193	229	287
			LD	2.9	4.4	6.1	10.1	14.5	20.0	26.3	33.6	39.1	51.8	63.5	77.2	95.3	123	145	177	209	263
			ND	2.3	3.7	5.0	8.4	13.5	17.3	22.8	29.1	35.4	43.6	55.4	68.1	82.6	102	136	163	197	236
Carrier frequency variation*5			VLD	0.5 to 10.0kHz														0.5 to 8.0kHz
			LD	0.5 to 12.0kHz														0.5 to 8.0kHz
			ND	0.5 to 16.0kHz														0.5 to 10.0kHz
Starting torque*6				200%/0.3Hz														180%/0.3Hz
Braking	Regenerative Braking			Internal BRD circuit (external discharge resistor value)												*7		Ext. regen. braking unit
Braking	Minimum resistance value (Ω)			100	100	100	70	70	35	35	24	24	20	15	15	10	10	-	-	-	-
Protective structure				IP20 – UL Open Type
Aprox. weight (kg)				3	3	3	3	6	6	6	8.5	8.5	8.5	22	31	31	31	41	41	53	53

Model name(P1-☐☐☐-H)				03720	04320	04860	05200	05500	06600
Applicable motor capacity (4 poles) (kW)*1			VLD	185	200	220	250	-	-
			LD	185	200	220	250	280	355
			ND	160	185	200	220	250	315
Output	Rated output current (A)*2		VLD	372	432	486	520	-	-
			LD	341	395	446	481	550	660
			ND	310	370	405	450	500	600
	Overload current rating		VLD	110% 60sec / 120% 3sec				-	-
			LD	120% 60sec / 150% 3sec
			ND	150% 60sec / 200% 3sec
	Rated output voltage			Three-phase (3 wire) 380 to 500 V (Corresponding to the incoming voltage)
	Rated capacity (kVA)	400V	VLD	258	299	337	360	-	-
			LD	236	274	309	333	381	457
			ND	215	256	281	312	346	416
		500V	VLD	322	374	421	450	-	-
			LD	295	342	386	417	476	572
			ND	268	320	351	390	433	520
Input	Rated input AC voltage*3			Main circuit power supply: Three-phase(3 wire) 380 to 500 V 50Hz/60Hz Control power supply: Single-phase supply 380 to 500 V 50Hz/60Hz
	Permissible AC voltage/ Frequency fluctuation*3			AC voltage:323 to 550V 50/60 Hz, Frequency :±5%
	Power supply capacity (kVA)*4		VLD	338	392	441	472	-	-
			LD	310	358	405	436	499	599
			ND	281	336	368	408	454	544
Carrier frequency variation*5			VLD	0.5 to 8.0kHz				-	-
			LD	0.5 to 8.0kHz
			ND	0.5 to 10.0kHz
Starting torque*6				180%/0.3Hz
Braking	Regenerative Braking			Ext. regen. braking unit
Braking	Minimum resistance value (Ω)			-	-	-	-	-	-
Protective structure				IP20 – UL Open Type
Aprox. weight (kg)				95	125	125	125	125	170
