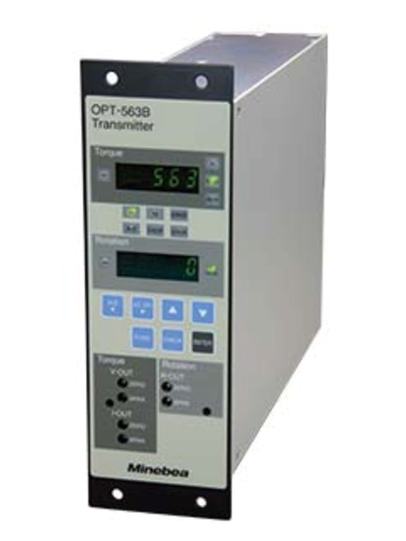

日本Minebeamitsumi美蓓亚主轴放大器OPT-563
发布时间：2024-05-28
日本Minebea美蓓亚主轴放大器OPT-563
日本Minebea美蓓亚主轴放大器OPT-563
日本Minebea美蓓亚主轴放大器OPT-563
日本Minebea美蓓亚主轴放大器OPT-563

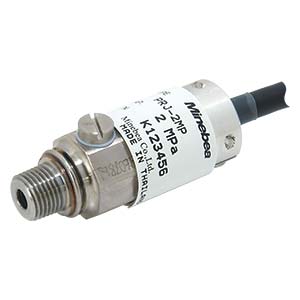

Features
・ Use upto a temperature (150 ℃)
・ Compact size and light weight, easy to install/detach.
Specification
| Specification name | Specification contents |
|---|---|
| Rated capacity | 1 Mpa ~ 10 MPa |
| Safe overload | 150 %R.C. |
| Ultimate overload | 300 %R.C. |
| Rated output | PRJ-1MP: 1 mV/V±0.2 mV/V, PRJ-2MP: 1.5 mV/V±0.3 mV/Vy PRJ-5MP~10MP: 1.5 mV/V±0.15 mV/V |
| Non-linearity | 0.3 %R.O. |
| Hysteresis | 0.3 %R.O. |
| Repeatability | 0.3 %R.O. |
| Excitation, recommended | 6 V or less |
| Excitation, maximum | 10 VDC |
| Zero balance | ±0.05 mV/V |
| Input resistance | 373.6 Ω±5 Ω |
| Output resistance | 350 Ω±5 Ω |
| Insulation resistance | 1 000 MΩ or more. (50 VDC) (between lead and main body.) |
| Temp. range, compensated | -40 ℃ ~ 150 ℃ |
| Temp. range, safe | -40 ℃ ~ 150 ℃ |
| Temp. effect on zero | 0.25 %R.O./10 ℃ |
| Temp. effect on output | 0.5 %LOAD/10 ℃ |
| Connector | PRC03-32A10-7F10.5 |
| Cable | φ5.6, 4 -cores shielded1.5 mcable for high temperature directly attachedwith NDI-7P-J(Jack) at the cable end. |
| Class of protection | IP60 or equivalent |
| Material of element | Stainless steel |
| Mounting screw | R1/8{PT} |
