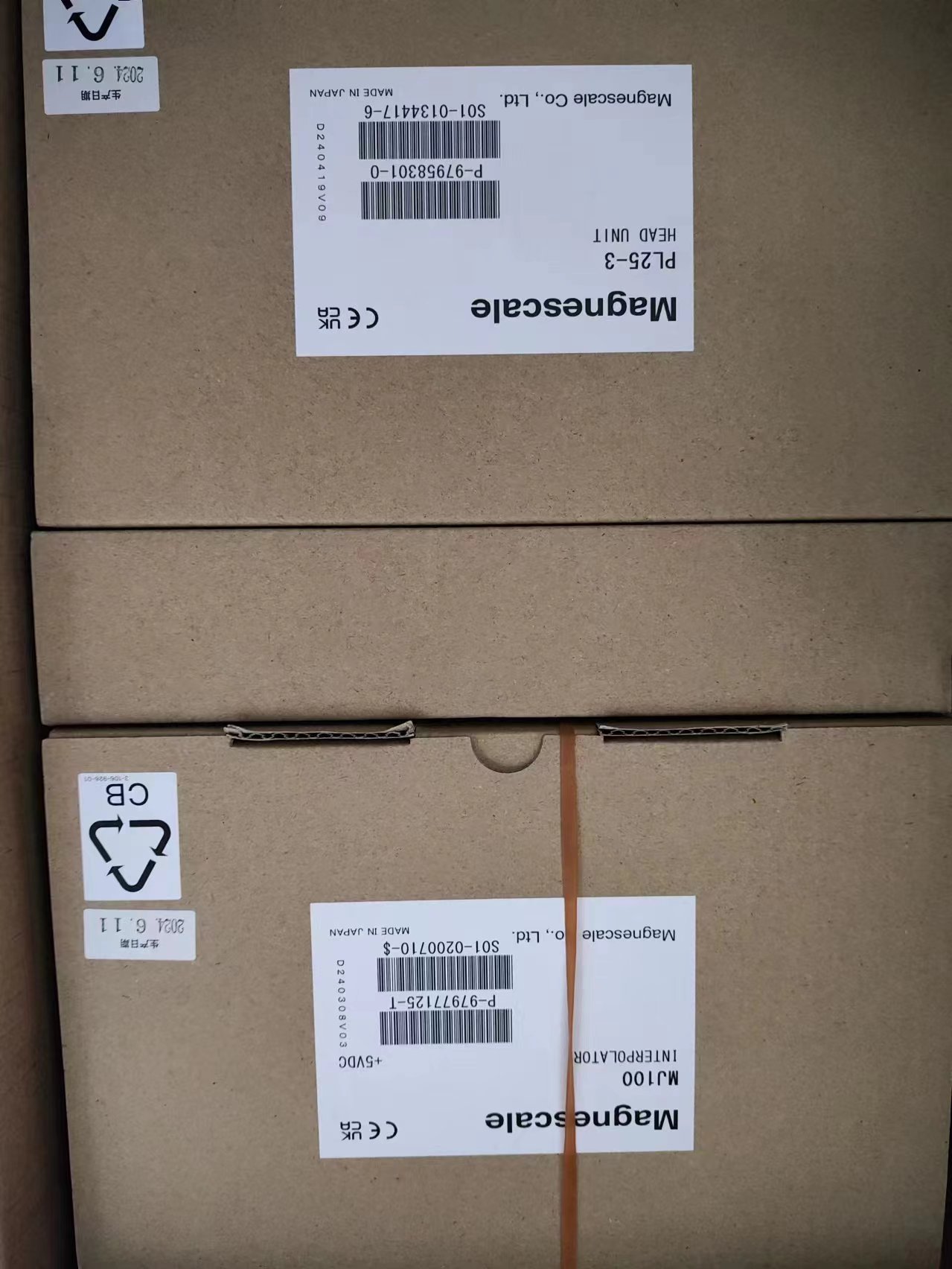

MJ100/MJ110
Product TOP
High response speed interpolator unit for position control
Capable of 40 to 1000 divisions
Produces AB quadrature signals with a resolution from 2 μm to 125 μm, when used in combination with the optionally available DigirulerR PL25 head unit and the SL110/130 scale unit (scale signal wavelength: 5 mm), or with the PL60 and the SL331 scale unit (scale signal wavelength: 2 mm).
MJ100: Supply voltage 5 V input, Line driver (EIA-422 compliance) output
MJ110: Supply voltage 12 to 30 V input, Open collector (lOL=50 mA maximum) output
MJ100 also generates U/ V/ W phase output with a period of reproduced DigirulerR signal (5 mm with PL25; 2 mm with PL60)
Specifications
| Specifications | |||
|---|---|---|---|
*1 These valuse for a minimum phase difference of 1 μs may vary depending on the output cable length. Magnescale reserves the right to change product specifications without prior notice. | |||
| Model | MJ100 | MJ110 | |
| Power supplyPower supply voltage | DC5 V (4.5 V to 6 V) | DC12 V to 30 V (11 V to 31 V) | |
| Power consumption | 4W | 3W | |
| Output interface | Line driver (EIA-422 compliance) | NPN open collector(IOL=50mA max.) | |
| Output | AB quadrature・Z phase・UVW phases・Alarm | AB quadrature・Z phase・Alarm | |
| Number of divisions | 1000, 960, 800, 512, 500, 480, 400, 256, 240, 200, 128, 120, 100, 80, 64, 40 and 1/2 of each of these (which does not satisfy the synchronized reference point specifications.) | ||
| Maximum response speed | 1000 divisions | 6 kHz:when connected to PL25 1800 m/min when connected to PL60 720 m/min | 600 Hz:when connected to PL25 180 m/min when connected to PL60 72 m/min*1 |
| 500 divisions | 15kHz:when connected to PL25 4500m/min when connected to PL60 1800m/min | 1.5 kHz:when connected to PL25 450 m/min when connected to PL60 180 m/min*1 | |
| 200divisions | 42kHz:when connected to PL25 12600 m/min when connected to PL60 5000 m/min | 4.2 kHz:when connected to PL25 1260 m/min when connected to PL60 500 m/min*1 | |
| 120 divisions | 70 kHz:when connected to PL25 21000m/min when connected to PL60 8400 m/min | 7.4 kHz:when connected to PL25 2220m/min when connected to PL60 888 m/min*1 | |
| Phase difference | 100 ns | 1 μs | |
| Alarm*2 | Speed alarm (minimum phase difference time or maximum response frequency); Level alarm (0.4 Vp-p or less); Minimum alarm time: approximately 400 ms | ||
| System startup time | Within 0.5 seconds after the power comes on line | ||
| Compatible head unit | PL25 or PL60 | ||
| Operating temperature | 0°C to 45°C | ||
| Storage temperature | -20°C to 60°C | ||
| Dimensions | 138×93×26 (mm) ncluding protrusions | ||
| Mass | 350 g | ||
| Accessories | Manual・Output connector・connector cap・mounting screws・Ferrite core | ||
| Option | SET-P16-1 (for external reference point) Scale extension cable, external reference point extension cable, Output connector with cable | ||
