日本三木MIKI PULLEY联轴器SFC-035DA2-10B-14B
发布时间：2024-05-30

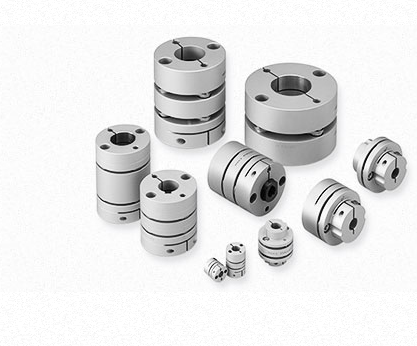

Servo Flex SFC (SFC-030DA2-10B-14B)
Part Number: SFC-030DA2-10B-14B
Uses lightweight, high-strength aluminum alloy for clamp hub. Extremely high torsional rigidity supporting high responsiveness.
Configured Specifications
Download| Type | Type of Flat Springs | Allowable Misalignment | Angular Misalignment / Eccentricity / Axial Misalignment |
|---|---|---|---|
| Application | Servo Motor / Stepping Motor / Encoder | Allowable Torque Range(N⋅m) | 3.01 to 5.00 |
| Hole diameter d1(mm) | 10 | Hole diameter d2(mm) | 14 |
| O.D.(Ø) | 34 | Full Length(mm) | 37.8 |
| Maximum Rotational Speed Range(r/min) | 4001~10000 | Features | High torsional rigidity / High Torque / High accuracy / High durability / Backlash 0 / Low Inertia Moment / Small |
| Body Material | Aluminum | Category | Coupling body |
