日本三木MIKI PULLEY胀紧套PSL-D-10
发布时间：2024-05-30

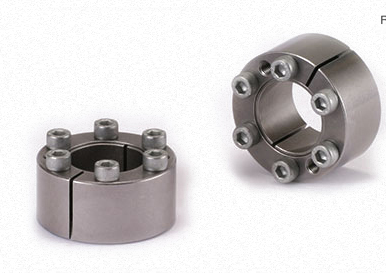

日本三木MIKI PULLEY胀紧套PSL-D-10
PSL-D Models Specifications
PSL-D Models
[Specifications]
| Model | Rated torque ［N・m］ | Rated thrust ［N］ | Shaft contact pressure ［N/mm2］ | Hub contact pressure ［N/mm2］ | Tightening torque ［N・m］ | Moment of inertia ［kg・m2］ | Mass ［kg］ |
|---|---|---|---|---|---|---|---|
| PSL-D-6 | 6 | 2100 | 150 | 60 | 1 | 0.48×10-6 | 0.012 |
| PSL-D-7 | 8 | 2100 | 140 | 60 | 1 | 0.52×10-6 | 0.013 |
| PSL-D-8 | 10 | 2600 | 110 | 50 | 1 | 0.77×10-6 | 0.015 |
| PSL-D-9 | 15 | 3200 | 130 | 60 | 1 | 1.1×10-6 | 0.020 |
| PSL-D-10 | 16 | 3200 | 110 | 60 | 1 | 1.2×10-6 | 0.019 |
| PSL-D-11 | 17 | 3200 | 100 | 50 | 1 | 1.8×10-6 | 0.024 |
| PSL-D-12 | 19 | 3200 | 100 | 50 | 1 | 1.7×10-6 | 0.022 |
| PSL-D-14 | 34 | 4800 | 100 | 50 | 2 | 4.3×10-6 | 0.039 |
| PSL-D-15 | 36 | 4800 | 90 | 50 | 2 | 5.7×10-6 | 0.044 |
| PSL-D-16 | 67 | 8400 | 130 | 60 | 4 | 10×10-6 | 0.068 |
| PSL-D-17 | 70 | 8400 | 120 | 60 | 4 | 18×10-6 | 0.093 |
| PSL-D-18 | 75 | 8400 | 110 | 60 | 4 | 17×10-6 | 0.090 |
| PSL-D-19 | 80 | 8400 | 110 | 60 | 4 | 16×10-6 | 0.085 |
| PSL-D-20 | 140 | 13600 | 150 | 80 | 8 | 24×10-6 | 0.120 |
| PSL-D-22 | 150 | 13600 | 140 | 80 | 8 | 29×10-6 | 0.130 |
| PSL-D-24 | 230 | 19300 | 150 | 80 | 14 | 70×10-6 | 0.220 |
| PSL-D-25 | 240 | 19300 | 140 | 80 | 14 | 69×10-6 | 0.210 |
| PSL-D-28 | 400 | 28900 | 190 | 110 | 14 | 86×10-6 | 0.240 |
| PSL-D-30 | 430 | 28900 | 180 | 100 | 14 | 128×10-6 | 0.270 |
| PSL-D-32 | 460 | 28900 | 170 | 100 | 14 | 123×10-6 | 0.260 |
| PSL-D-35 | 670 | 38600 | 160 | 90 | 14 | 215×10-6 | 0.370 |
| PSL-D-38 | 730 | 38600 | 150 | 90 | 14 | 298×10-6 | 0.420 |
| PSL-D-40 | 770 | 38600 | 140 | 90 | 14 | 286×10-6 | 0.410 |
| PSL-D-42 | 1110 | 52700 | 150 | 80 | 34 | 682×10-6 | 0.700 |
| PSL-D-45 | 1200 | 52700 | 140 | 80 | 34 | 609×10-6 | 0.630 |
| PSL-D-48 | 1690 | 70300 | 190 | 110 | 34 | 769×10-6 | 0.730 |
| PSL-D-50 | 1760 | 70300 | 180 | 110 | 34 | 742×10-6 | 0.710 |
*The rated torque values are those when the thrust is zero and the rated thrust values are those when the torque is zero.
[Dimensions]
Unit ［mm］
| Model | d | D | P | L | L1 | M1 | M2 |
|---|---|---|---|---|---|---|---|
| PSL-D-6 | 6 | 16 | 11 | 11 | 13.5 | 3-M2.5×10 | 2-M2.5 |
| PSL-D-7 | 7 | 17 | 12 | 11 | 13.5 | 3-M2.5×10 | 2-M2.5 |
| PSL-D-8 | 8 | 18 | 13 | 11 | 13.5 | 3-M2.5×10 | 2-M2.5 |
| PSL-D-9 | 9 | 20 | 15 | 13 | 15.5 | 4-M2.5×12 | 2-M2.5 |
| PSL-D-10 | 10 | 20 | 15 | 13 | 15.5 | 4-M2.5×12 | 2-M2.5 |
| PSL-D-11 | 11 | 22 | 17 | 13 | 15.5 | 4-M2.5×12 | 2-M2.5 |
| PSL-D-12 | 12 | 22 | 17 | 13 | 15.5 | 4-M2.5×12 | 2-M2.5 |
| PSL-D-14 | 14 | 26 | 20 | 17 | 20 | 4-M3×16 | 2-M3 |
| PSL-D-15 | 15 | 28 | 21.5 | 17 | 20 | 4-M3×16 | 2-M3 |
| PSL-D-16 | 16 | 32 | 24 | 17 | 21 | 4-M4×16 | 2-M4 |
| PSL-D-17 | 17 | 35 | 27 | 21 | 25 | 4-M4×20 | 2-M4 |
| PSL-D-18 | 18 | 35 | 27 | 21 | 25 | 4-M4×20 | 2-M4 |
| PSL-D-19 | 19 | 35 | 27 | 21 | 25 | 4-M4×20 | 2-M4 |
| PSL-D-20 | 20 | 38 | 29 | 21 | 26 | 4-M5×20 | 2-M5 |
| PSL-D-22 | 22 | 40 | 31 | 21 | 26 | 4-M5×20 | 2-M5 |
| PSL-D-24 | 24 | 47 | 36 | 26 | 32 | 4-M6×25 | 2-M6 |
| PSL-D-25 | 25 | 47 | 36 | 26 | 32 | 4-M6×25 | 2-M6 |
| PSL-D-28 | 28 | 50 | 39 | 26 | 32 | 6-M6×25 | 2-M6 |
| PSL-D-30 | 30 | 55 | 43.5 | 26 | 32 | 6-M6×25 | 2-M6 |
| PSL-D-32 | 32 | 55 | 43.5 | 26 | 32 | 6-M6×25 | 2-M6 |
| PSL-D-35 | 35 | 60 | 47.5 | 31 | 37 | 8-M6×30 | 2-M6 |
| PSL-D-38 | 38 | 65 | 52.5 | 31 | 37 | 8-M6×30 | 2-M6 |
| PSL-D-40 | 40 | 65 | 52.5 | 31 | 37 | 8-M6×30 | 2-M6 |
| PSL-D-42 | 42 | 75 | 60 | 36 | 44 | 6-M8×35 | 2-M8 |
| PSL-D-45 | 45 | 75 | 60 | 36 | 44 | 6-M8×35 | 2-M8 |
| PSL-D-48 | 48 | 80 | 65 | 36 | 44 | 8-M8×35 | 2-M8 |
| PSL-D-50 | 50 | 80 | 65 | 36 | 44 | 8-M8×35 | 2-M8 |
*L and L1 are dimensions before the POSI-LOCK is mounted.
*The nominal diameter of each bolt and tap is equal to the quantity minus the nominal diameter of the screw threads times the nominal length.
PSL-D (C) Types
[Specifications]
| Model | Rated torque ［N・m］ | Rated thrust ［N］ | Shaft contact pressure ［N/mm2］ | Hub contact pressure ［N/mm2］ | Tightening torque ［N・m］ | Moment of inertia ［kg・m2］ | Mass ［kg］ |
|---|---|---|---|---|---|---|---|
| PSL-D-16-C | 67 | 8400 | 130 | 60 | 4 | 10×10-6 | 0.068 |
| PSL-D-17-C | 70 | 8400 | 120 | 60 | 4 | 18×10-6 | 0.093 |
| PSL-D-18-C | 75 | 8400 | 110 | 60 | 4 | 17×10-6 | 0.090 |
| PSL-D-19-C | 80 | 8400 | 110 | 60 | 4 | 16×10-6 | 0.085 |
| PSL-D-20-C | 140 | 13600 | 150 | 80 | 8 | 24×10-6 | 0.120 |
| PSL-D-22-C | 150 | 13600 | 140 | 80 | 8 | 29×10-6 | 0.130 |
| PSL-D-24-C | 230 | 19300 | 150 | 80 | 14 | 70×10-6 | 0.220 |
| PSL-D-25-C | 240 | 19300 | 140 | 80 | 14 | 69×10-6 | 0.210 |
| PSL-D-28-C | 400 | 28900 | 190 | 110 | 14 | 86×10-6 | 0.240 |
| PSL-D-30-C | 430 | 28900 | 180 | 100 | 14 | 128×10-6 | 0.270 |
| PSL-D-32-C | 460 | 28900 | 170 | 100 | 14 | 123×10-6 | 0.260 |
| PSL-D-35-C | 670 | 38600 | 160 | 90 | 14 | 215×10-6 | 0.370 |
| PSL-D-38-C | 730 | 38600 | 150 | 90 | 14 | 298×10-6 | 0.420 |
| PSL-D-40-C | 770 | 38600 | 140 | 90 | 14 | 286×10-6 | 0.410 |
| PSL-D-42-C | 1110 | 52700 | 180 | 110 | 34 | 682×10-6 | 0.700 |
| PSL-D-45-C | 1200 | 52700 | 140 | 80 | 34 | 609×10-6 | 0.630 |
| PSL-D-48-C | 1690 | 70300 | 190 | 110 | 34 | 769×10-6 | 0.730 |
| PSL-D-50-C | 1760 | 70300 | 180 | 110 | 34 | 742×10-6 | 0.710 |
*The rated torque values are those when the thrust is zero and the rated thrust values are those when the torque is zero.
[Dimensions]
Unit ［mm］
| Model | d | D | P | L | L1 | M1 | M2 |
|---|---|---|---|---|---|---|---|
| PSL-D-16-C | 16 | 32 | 24 | 17 | 21 | 4-M4×16 | 2-M4 |
| PSL-D-17-C | 17 | 35 | 27 | 21 | 25 | 4-M4×20 | 2-M4 |
| PSL-D-18-C | 18 | 35 | 27 | 21 | 25 | 4-M4×20 | 2-M4 |
| PSL-D-19-C | 19 | 35 | 27 | 21 | 25 | 4-M4×20 | 2-M4 |
| PSL-D-20-C | 20 | 38 | 29 | 21 | 26 | 4-M5×20 | 2-M5 |
| PSL-D-22-C | 22 | 40 | 31 | 21 | 26 | 4-M5×20 | 2-M5 |
| PSL-D-24-C | 24 | 47 | 36 | 26 | 32 | 4-M6×25 | 2-M6 |
| PSL-D-25-C | 25 | 47 | 36 | 26 | 32 | 4-M6×25 | 2-M6 |
| PSL-D-28-C | 28 | 50 | 39 | 26 | 32 | 6-M6×25 | 2-M6 |
| PSL-D-30-C | 30 | 55 | 43.5 | 26 | 32 | 6-M6×25 | 2-M6 |
| PSL-D-32-C | 32 | 55 | 43.5 | 26 | 32 | 6-M6×25 | 2-M6 |
| PSL-D-35-C | 35 | 60 | 47.5 | 31 | 37 | 8-M6×30 | 2-M6 |
| PSL-D-38-C | 38 | 65 | 52.5 | 31 | 37 | 8-M6×30 | 2-M6 |
| PSL-D-40-C | 40 | 65 | 52.5 | 31 | 37 | 8-M6×30 | 2-M6 |
| PSL-D-42-C | 42 | 75 | 60 | 36 | 44 | 6-M8×35 | 2-M8 |
| PSL-D-45-C | 45 | 75 | 60 | 36 | 44 | 6-M8×35 | 2-M8 |
| PSL-D-48-C | 48 | 80 | 65 | 36 | 44 | 8-M8×35 | 2-M8 |
| PSL-D-50-C | 50 | 80 | 65 | 36 | 44 | 8-M8×35 | 2-M8 |
*L and L1 are dimensions before the POSI-LOCK is mounted.
*The nominal diameter of each bolt and tap is equal to the quantity minus the nominal diameter of the screw threads times the nominal length.
