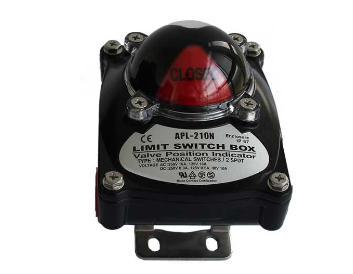

韩国HKC限位开关APL-210N

Material

• Aluminium alloy

Enclosure

•Standard: Ex db IIC T5 / IP67
• Watertight enclosure: IP68 (10 m, 72 hours)

Certificates & approvals

• IECEx (Ex db IIC T5 Gb)
• ATEX (II 2G Ex db IIC T5 Gb)
• KCs (Ex d IIC T6 IP68)
• CCC (Ex d IIC T5 Gb)
• SIL 2
• ABS type approval
• RMRS type approval

Travel angle

• Standard: 0-90°
• Option: 0-120°, 135°

Solenoid valve voltage

• 110/220 V ac 1ph, 50/60 Hz, ±10%
• 24 V dc

Solenoid valve port

• 3-way, NPT1/8, NPT1/4, G1/4
• 5-way, NPT1/4, NPT3/8, G1/8, G1/4

Ambient temperature

•-20 to +60 °C

Cable entries

• 3 x NPT3/4″, 3 x M20

Switches

• 2 x mechanical switches or proximity sensors

Terminal points

• Standard: 8 points
• Option: 10 points

Shaft

• Standard: stainless steel 304
• Option: stainless steel 316

Control option

• PIU: Potentiometer unit (1 kΩ, 10 kΩ)
• CPT: Current Position Transmitter (output: 4-20 mA dc)

Dome indicator

• No indicator
• 2-way, yellow(open) / red(close)
• 2-way, green(open) / red(Close)
• 3-way, T-port, yellow(open) / red(close)
• 3-way, T-port, green(open) / red(close)
• 3-way, L-port, yellow(open) / red(close)
• 3-way, L-port, green(open) / red(close)

Bracket

• Standard: stainless steel 304 / option: stainless steel 316:
-MBP-050 (25 x 50, H:20)
-MBP-100 (30 x 80, H:20)
-MBP-200 (30 x 80, H:30)
-MBP-300 (30 x 130, H:30)
-MBP-400 (30 x 130, H:50)

Weight

• 2.1 kg (without bracket)

Color

BlackRAL 9005OtherNano coatingEnhance corrosion resistance
