日本OTOWA音羽電機浪涌保护装置LT-C35G102WS
发布时间：2024-05-31
Surge Protection Devices (LT-C35G102W)
Compact, Class II
Part Number: LT-C35G102W
LT-C series compact surge protectors from Otowa Electric utilize built in disconnect mechanisms to protect against electrical surges and over-voltages. An integrated detaching mechanism helps to prevent smoke emission.
[Features]
・Integrated line-to-ground and ground-to-ground discharge protection.
・2-phase and 3-phase options available.
・Choose from 1.5kV, 1.8kV, or 2.0kV surge protection.
・2-phase and 3-phase options available.
・800V or 1000V of current discharge between line and ground possible.
Caution

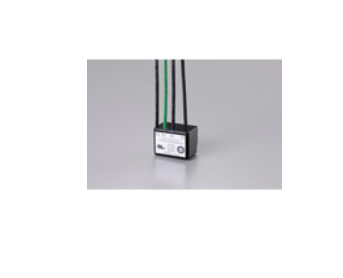

Product image is for representative purposes only and not reflective of every product available on this page.
Configured Specifications
Download| Application | [Power Supply] Power supply | Voltage | 500V |
|---|---|---|---|
| Model | Integrated | Mounting Method | [Other] Cord direct removal |
| Class Category | Class II | Representative Standard | UL / CUL / TUV / CSA |
| Height(mm) | 33.5 | Width(mm) | 38 |
| Depth(mm) | 28 | Maximum Continuous Operational Voltage | Y wire connection AC 550 V/△ wire connection 320 V |
| Nominal Discharge Current (8/20 μs) | 2500A | Maximum Discharge Current (8/20 μs) | 5000A |
