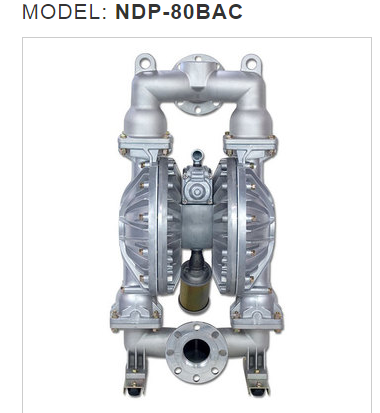

日本YAMADA山田隔膜泵NDP-80BAC
发布时间：2024-05-31
PRODUCT DETAILS
Yamada® NDP-80BAC series is the flagship of the NDP line of Air Powered Double Diaphragm (AODD) pumps, providing a maximum flow rate of 214 gallons per minute. Pumps are available in aluminum, stainless steel (316), cast iron, and polypropylene construction, with a wide variety of diaphragm materials.
| Inlet (in) | 3 |
| Outlet (in) | 3 |
| Max Flow (gpm) | 215.0 |
| Max Temp | 180 |
| Max Solid (in) | 13/32 |
| Valve Type (in) | 3/4 |
| Air Motor Material | Aluminum |
| Body Material | Aluminum |
| Elastomer Material | Neoprene |
