A completely new type of digital controller that can be used with the full line-up of feeders, from high frequency mini parts feeders to small electromagnetic feeders and large size models. With ‘analog-style’ operation it can be adjusted very swiftly.
With an auto-tuning function that eliminates the need for frequency adjust-ment, and convenient digital settings and display, drive units can be operated to their full potential.

Features

Auto-tuning function eliminates leafspring adjustment (C10-1VFEF, 3VFEF, 5VFEF)
This digital equipment has a special advanced vibration frequency auto-tuning function. It automatically tracks resonance point changes not only from changes to input volume of workpieces, but also from mechanical changes over time, to deliver optimal vibration at all times. No leaf-spring adjustment or even frequency adjustment is necessary, thereby boosting operation efficiency and saving energy.
Digital setting and display makes settings easy to manage
Amplitude, drive frequency, output voltage notches are all set and displayed digitally, for easy management.
Constant amplitude control matched to workpieces or materials (C10-1VFEF, 3VFEF, 5VFEF)
Amplitude can be set digitally, and an amplitude sensor allows drive at constant amplitude suited to the workpieces under conveyance.

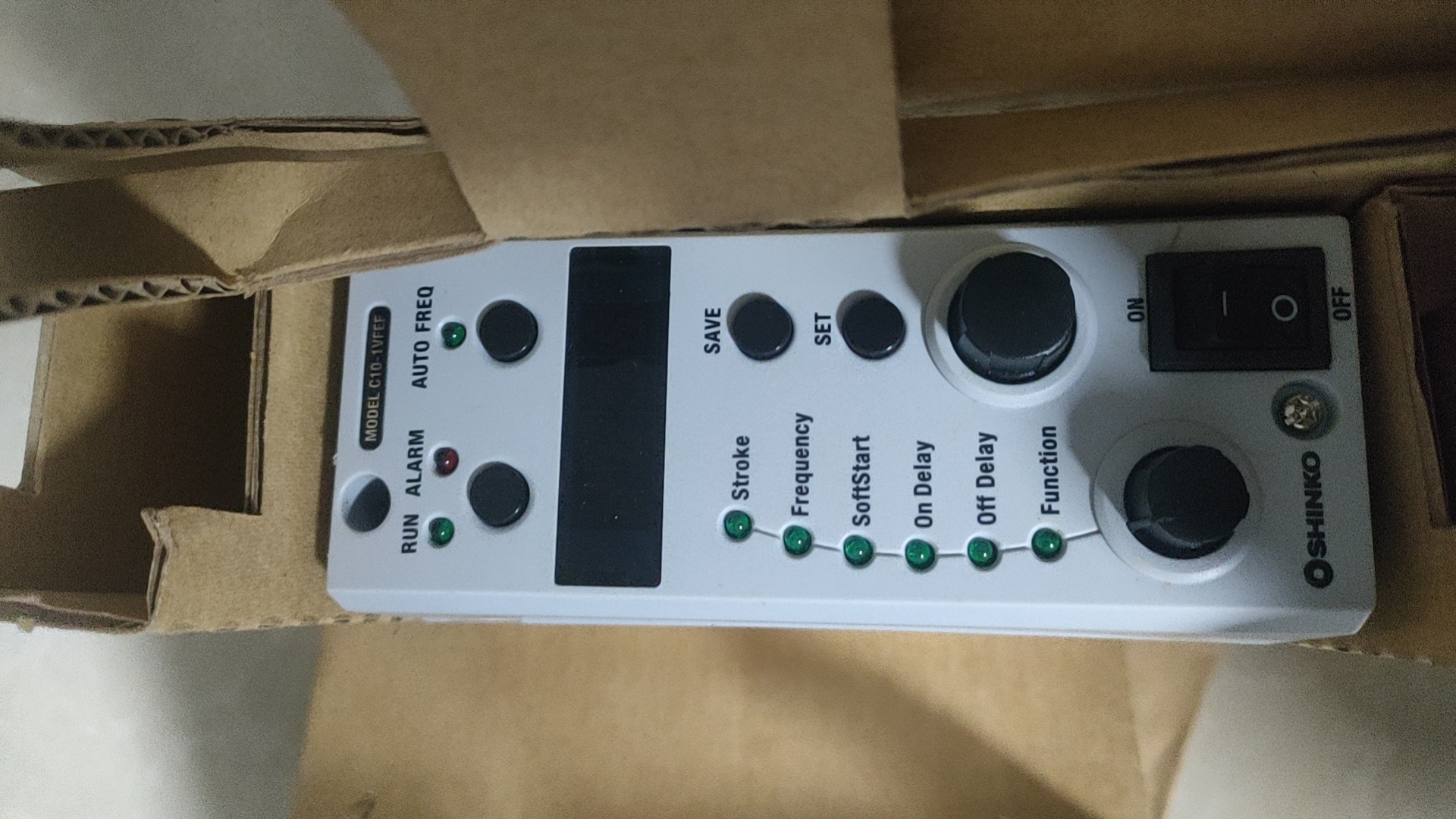

Easy-to-use panel design
The frequency, voltage, soft start, on delay and off delay settings needed for parts feeder adjustment are located on a control panel. A rotary encoder allows ‘analog-style’ setting input to be changed to digital values.
Many external control functions
Choice of four speeds can be made by external signal. Two-step control through external regulating resistance. External volume adjustment via a DC4-20mA signal is also possible.
CE Marking conformed product
Required to be installed inside the control box treated with Noise filter and IP4X to make product comply to CE Marking.

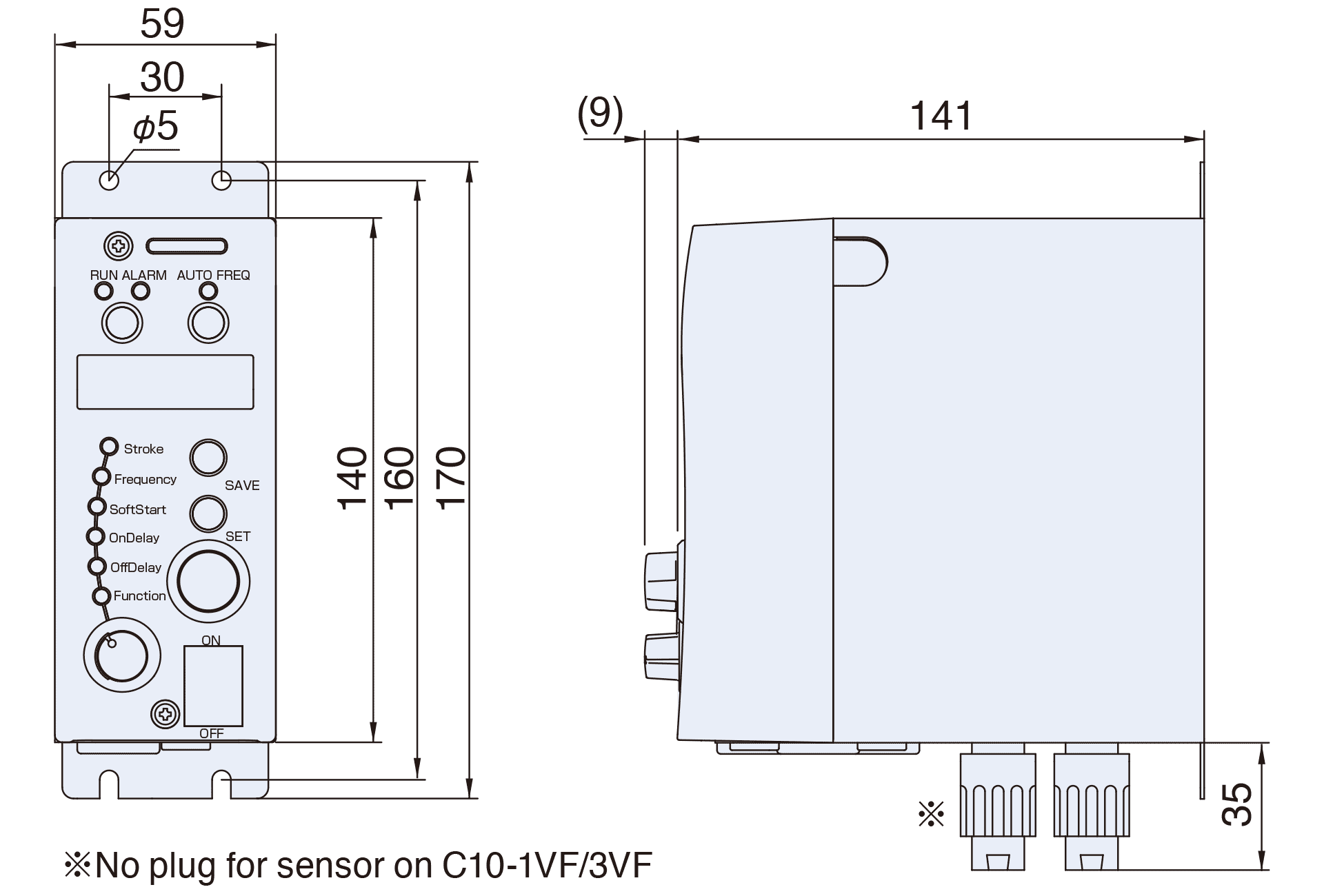

Dimensions

C10-1VF/1VFEF/3VF/3VFEF
