日本ULVAC爱发科真空泵DAU-20DC

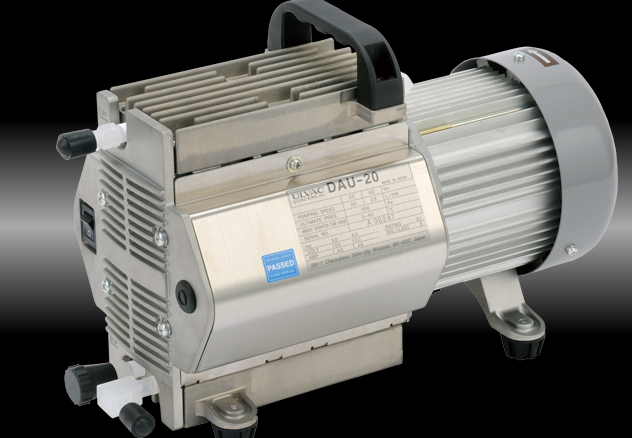

Outline
This is a vacuum pump that evacuates by the reciprocating motion of a rubber thin film (diaphragm). Simple structure and easy handling. DAU series is a high vacuum type.
Features and Cautions on use
High vacuum type diaphragm pump.
Low vibration
Specification
Pumping speed unit
L/min
Pressure unit
Pa
| Item | Unit | 50Hz | 60Hz |
|---|---|---|---|
| Actual Pumping Speed | L/min | 20 | 23 |
| Ultimate Pressure | Pa | 200 | |
| kPa | -101.1 #1 | ||
| Motor Output | W | 80 | |
| Weight | kg | 7.5 | |
| Inlet, Outlet port diameter | mm | O.D.φ10×I.D.φ6 (Rc 1/8) | |
| Ambient temperature | ℃ | 5～40 | |
| Overall dimensions | mm | 161(W) × 327(L) × 217(H) | |
| RoHS applied | ● | ||
#1: Gauge pressure
Power Supply/Voltage
| Voltage | Certificate | Remarks |
|---|---|---|
| Single phase, 100V | ― | |
| Single phase, 100V | CE, TUV, cTUVus | |
| Single phase, 115V | CE, TUV, cTUVus | |
| Single phase, 200V | CE, TUV, cTUVus | |
| Single phase, 220V | CE, TUV, cTUVus | |
| Single phase, 230V | CE, TUV, cTUVus |
■TUV Certification: A high-quality product that complies with European standards as assessed by an international third party that conducts product safety testing and certification.

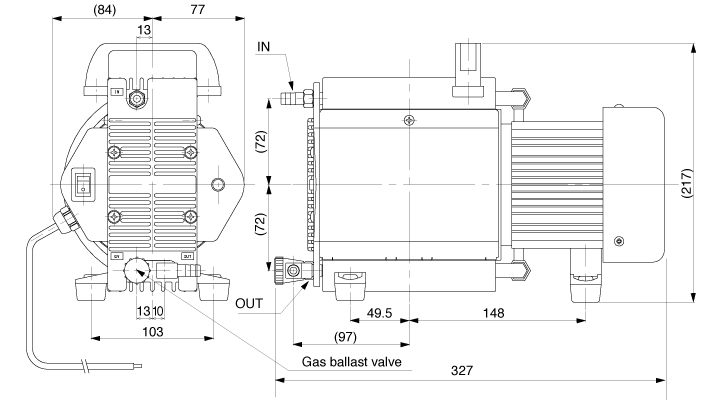

Outline Drawing

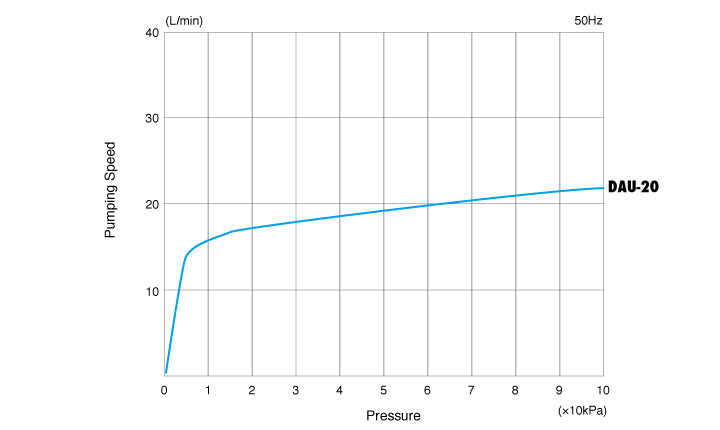

Pumping Speed Curves
Remarks
The pump is stopped when the lord is operated, and the pump can’t be operated just after that. In this case, please return the atmospheric pressure the inside of the pump.
The pump will not often operate normally if it is used with corrosive gases, organic solvents, liquids, or condensed gases (eg steam). The pump will not often operate normally if it is used with gases containing particles or dust etc.
It is a pump only in the room. Please do not set it up in the place, that rain and water splash, and outdoors.
It may cause the failure of the pump if it is used for long hours
close to the atomospheric pressure.
Applied optional part items
| No. | Category name | Series | Name |
|---|---|---|---|
| 1 | Maintenance Kit | Maintenance Kit Series | Maintenace Kit for DAU-20 |
| 2 | Anti-vibration Rubber | Anti-vibration Rubber | Anti-vibration rubber (ME-12) |
