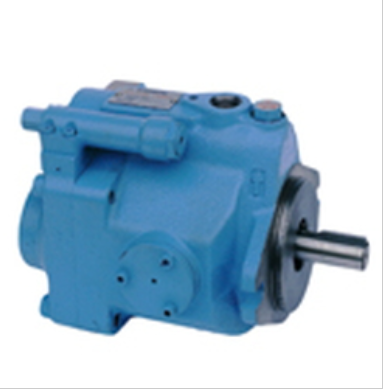

日本DAIKIN大金柱塞泵V8A1RX-20
发布时间：2024-06-24
Configured Specifications
| Type | Pump | Motor | No |
|---|---|---|---|
| Theoretical Discharge per Process(cm3/rev) | 8.0 | Mounting Method | No Mounting Fitting |
| Range of Working Oil Temperatures(℃) | ～45 or Less | Pump Type | Piston Pump |
| Control Method | Pressure Compensator Control | Pressure Adjustment Range(Mpa {kgf/cm2}) | 0.8~7 {8~70} |
| Direction of Piping Connection | Side Port | Allowable Rotational Speed(min) | 500~1800 |
| Suction Connection Port | G3/4 | Discharge Connection Port | G3/4 |
| Show More | |||
Product Description
Features high responsiveness and stability, while also boasting a long service life. Helps improve the reliability of the main machine. Suffers little from power loss, helping reduce increases in oil temperature. Also helps minimize the required tank capacity. Delivers quiet operation across the entire pressure range for each product series.
[Features]
· Delivers quiet operation across the entire pressure range for each product series.
· Suffers little from power loss, helping reduce increases in oil temperature. Also helps minimize the required tank capacity.
· Features high responsiveness and stability, while also boasting a long service life. Helps improve the reliability of the main machine.
