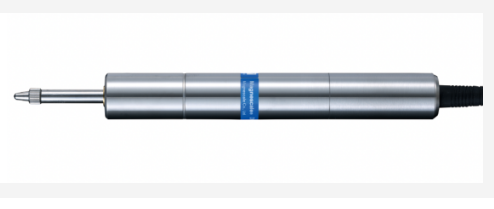

Product lineup capable of measuring up to 205 mm.
The robust structure creates superior environmental resistance and rigidity, and is able to be used in a wide range of applications.
Measuring range : 10 mmm, 25 mm, 50 mm, 100 mm, 155 mm, 205 mm
Maximum Resolution : 0.5 μm
Accuracy : 2 μm p-p to 6 μm p-p (depends on the model)
Dustproof, dripproof, and oilproof construction. Good environmental resistance. (P type)
High measuring force (DK10/25/50/100P type) : 4.9 N to 9.3 N (depends on the model)
Low measuring force (DK10/25/50/100N type) : 0.3 N to 2.7 N (depends on the model)
Measurement can be performed by adsorbing it to the moving table with the attached magnetic adsorption type feeler (DK155/205).
Built-in reference point
Output signal: A/B/reference point (voltage-differential line driver output)
*1 The resolution setting needs to be made when connecting to the LT30 series, MG series, and LY70 series. For details, please refer to the respective instruction manual. *2 The mass indicated is the total mass excluding the cable and interpolation box. Magnescale reserves the right to change product specifications without prior notice. *1 The resolution setting needs to be made when connecting to the LT30 series, MG series, and LY70 series. For details, please refer to the respective instruction manual. *2 The mass indicated is the total mass excluding the cable and interpolation box. Magnescale reserves the right to change product specifications without prior notice.Specifications
Specifications Model DK10NR5 DK10PR5 DK10PLR5 Output A/B/reference point, voltage-differential line driver output (conforming to EIA-422) Maximum resolution*1 0.5 μm Measuring range 10 mm Accuracy (at 20 °C) 2 μm Measuring force (at 20 °C) Upward 0.3 ±0.25 N 4.9 N or less Horizontal 0.6 ±0.3 N 4.9 N or less Downward 0.8 ±0.35 N 4.9 N or less Reference point at 1 mm ±0.5 mm position of spindle movement Maximum response speed 250 m/min Vibration resistance 150 m/s2 (10 to 2,000 Hz) Impact resistance 1,500 m/s2 (11 ms) Protection grade IP50 IP64 Operating temperature 0 to +50 °C Storage temperature −20 to +60 °C Power supply DC +5 V ±5 % Power consumption 1 W or less Output cable length Approx. 2.5 m Stem diameter φ20 0‒0.013mm Mass*2 Approx. 230 g Feeler DZ-122 : carbide ball tip, mounting screw M2.5 Accessories +P M4x5 screw (2 pcs.), instruction manual Specifications Model DK25NR5 DK25PR5 DK25NLR5 DK25PLR5 Output A/B/reference point, voltage-differential line driver output (conforming to EIA-422) Maximum resolution*1 0.5 μm Measuring range 25 mm Accuracy (at 20 °C) 2 μm p-p Measuring force (at 20 °C) Upward 0.4 ±0.3 N 4.9 N or less 0.4 ±0.3 N 4.9 N or less Horizontal 0.7 ±0.35 N 4.9 N or less 0.7 ±0.35 N 4.9 N or less Downward 1 ±0.4 N 4.9 N or less 1 ±0.4 N 4.9 N or less Reference point at 1 mm ±0.5 mm position of spindle movement Maximum response speed 250 m/min Vibration resistance 150 m/s2 (10 to 2,000 Hz) Impact resistance 1,500 m/s2 (11 ms) Protection grade IP50 IP64 IP50 IP64 Operating temperature 0 to +50 °C Storage temperature −20 to +60 °C Power supply DC +5 V ±5 % Power consumption 1 W or less Output cable length Approx. 2.5 m Stem diameter φ20 0‒0.013mm Mass*2 Approx. 300 g Feeler DZ-122 : carbide ball tip, mounting screw M2.5 Accessories +P M4x5 screw (2 pcs.), instruction manual
