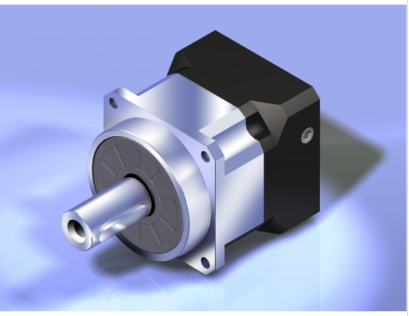

AF-SERIES HIGH PRECISION PLANETARY GEARBOXES

The Apex AF series is the Next generation in planetary technology. Highest Precision, Highest Torque and Quiet Operation are provided by 100% optimized Helical Gearing. High Axial and Radial Loads provided by High Precision Taper Roller Bearings.

NEW! - Expanded Ratios -12/16/28/32 and Widened Mounting Capability with AF100A and AF140A

• Details

• Downloads

• Specifications

• Dimensions

• Ordering Code

• Output torque
  T2N : 14 Nm - 2000 Nm

• Ratios
  1-stage : 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10
  2-stage : 12 / 15 / 16 / 20 / 25 / 28 / 30 / 32 / 35 / 40 / 45 / 50 /
  60 / 70 / 80 / 90 / 100


• Low backlash
  1-stage : ≤1arcmin / ≤3arcmin / ≤5arcmin
  2-stage : ≤3arcmin / ≤5arcmin / ≤7arcmin


• High efficiency
  1-stage : ≧ 97%
  2-stage : ≧ 94%


• Easy mount


• Low Noise


• Compact structure

The Most Professional Servomotor Drive Planetary Gearbox Manufacturer in the World

Apex Dynamics, Inc. is a worldwide leader in manufacturing of planetary gearboxes. Based on more than twenty years of accumulated manufacturing and marketing experience, plus the highest level of technical production capabilities, Apex Dynamics, Inc. designed and built a technically advanced, high speed, low backlash servo application planetary gearbox. Our Break through patented technology (over 6 patents), provides the customer with the optimum high precision helical reducer at a reasonable price and is offered with the only tip to toe 5-Year warranty in the industry today, including the seals and bearings. Our company slogan is TRUTHFUL RESPONSIBLE CREATIVE. The primary focus in daily operation is quality. We pride ourselves on our dedication to quality; our duty, is customer satisfaction. We are continuously improving processes, finding proper and effective methods to provide customers new solutions for difficult applications, and developing new products.  Read More
