日本Tsukasa驰卡沙电机TG-55N-SM-5-HA
发布时间：2024-07-01
Features
(5 ~ 13.7W) ?35.8 Inner rotor type DC brushless motor
Motor size (φ diameter)φ35.8
Gear sizeφ36
motor55L
GearSU
Reduction ratio13.2
Rated voltage (V)12V
No-load rotation speed (rpm136
No-load current (mA)65
Rated torque (mN ・ m)196
Rated torque (kgf ・ cm)2
Rated rotation speed (r / min)63.6
Rated current (mA)371
Direction of rotationCW
Mass (g)320
Corresponding driverTCP-S27A-55N
TCP-P27A-55N

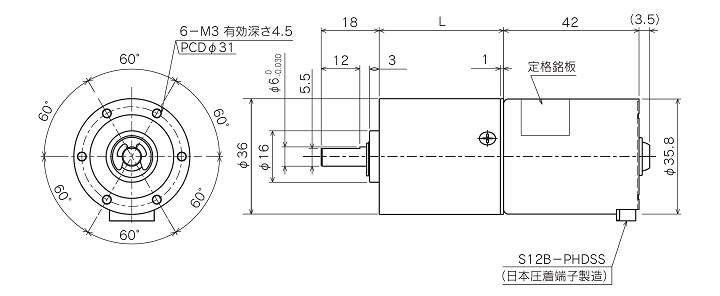

Outline drawing

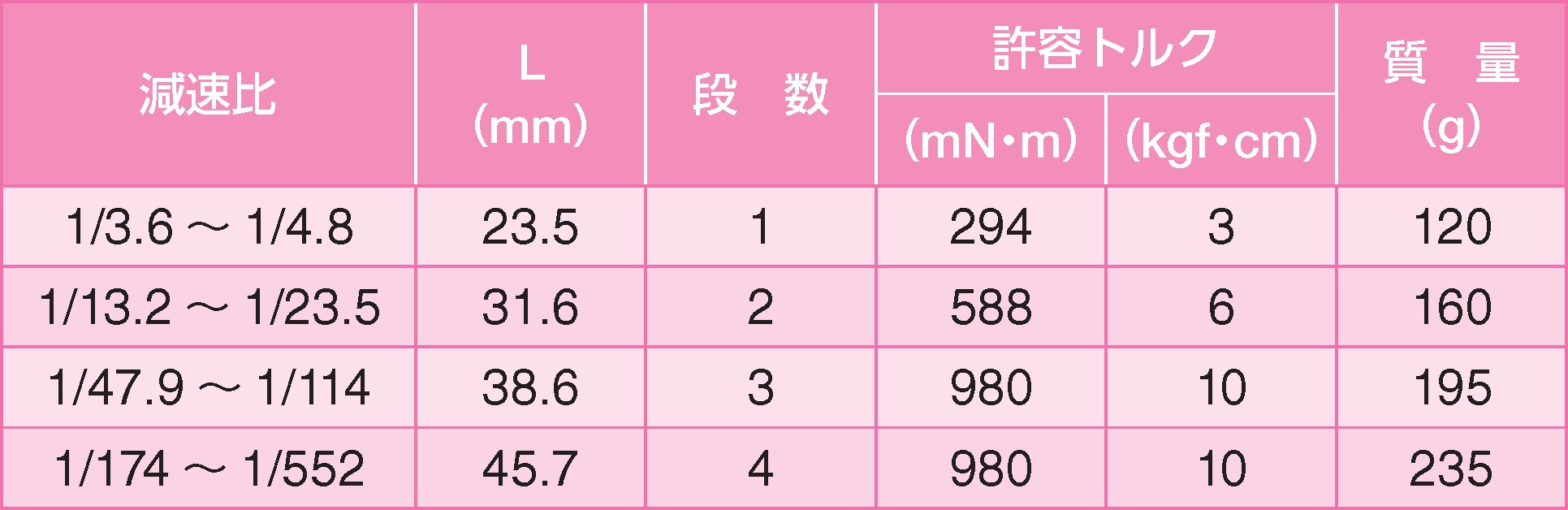

Gear head specifications
