DD motor series
DMFI375-600RE42
►Fully sealed stator winding
►There are two structure types of inner rotor and outer rotor to meet more application requirements
►It has the advantages of high precision, high rigidity, low axial radial runout, etc.< /span>
►Absolute accuracy can reach ±10arc-sec
►Repeat positioning accuracy can reach ±0.5arc-sec< /p>
►RoHs, FCC, CE certification
产品描述
Product Description
Insulation class: Class F
Insulation withstand voltage: 1500V for 1 minute
Insulation resistance: 10MΩ or more (500VDC)
Other structure: outer rotor type
Excitation method: 3-phase
Power supply: 200-230VAC
Others: Nominal torque is the value when installed on a metal base with sufficient heat capacity. The position resolution is the recommended value and is set according to the drive. The mechanical accuracy of the load mounting surface is the axial deviation and radial deviation of the mounting surface.
Direct-Drive Rotary Motor Advantages
Product Parameter
| Peak Torque | N.m | 600 | ||
| Continuous Torque | N.m | 200 | ||
| Max. Speed | rps | 1.5 | ||
| Rated speed | rps | 1 | ||
| Line Resistance | Ohm | 4.6 | ||
| Line Inductance | mH | 18.9 | ||
| Torque Constant | Nm/Arms | 32 | ||
| Back-EMF Constant | Vp /(krpm) | 2736 | ||
| Continuous Current | Arms | 8 | ||
| Peak Current | Arms | 23 | ||
| Pole Pairs | P | 33 | ||
| Accuracy Requirement | Encoder Resolution | pluse/rev | 2592000 | |
| Absolute Accuracy | arc-sec | ±10 | ||
| Repeatability | arc-sec | ±1 | ||
| Number of Origin Pulse | pulse/rev | 1 | ||
| Max. Power | KVA | 6 | ||
| Rated power | KVA | 2 | ||
| Rotor inertia | kgcm² | 3900 | ||
| Max. Moment load | Axial Load | Positive | N | 50000 |
| Negative | N | 20000 | ||
| Radial Load | Nm | 600 | ||
| Mechanical Accuracy of Load Mounting | μm | 15 or less | ||
| Weight | kg | 75 | ||
| Environmental Requirements | Temperature | ℃ | -10~50 | |
| Humidity | ％ | ≤85 | ||
| Atmospheric Environment | - | No Corrosive Gas And Dust. Altitude Below 1000m | ||

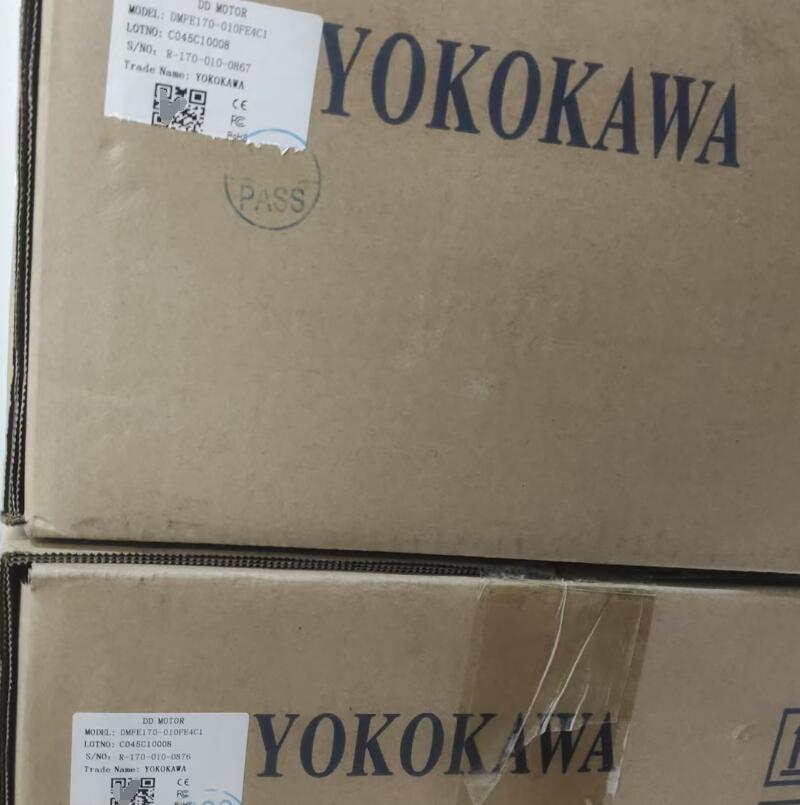

Product appearance
