日本渡边WATANABE数显表A7211-1
发布时间：2024-07-08

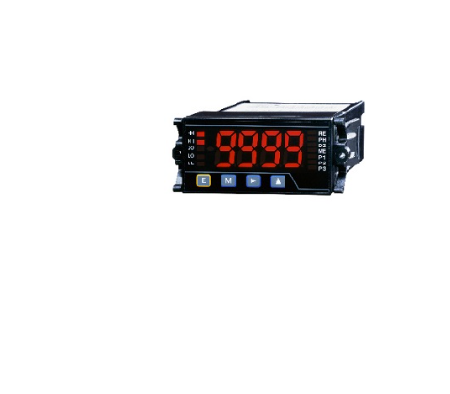

Digital Panel Meters (A7211-1)
A7000 Series
Part Number: A7211-1
DIN rail mounted digital scaling panel meter used to display various signal and measurement outputs. Single or multi-display options available along with a two-color LED indicator light for rapid alarm status recognition. The measurement and input ranges can be customized, along with input, output, and power supply specifications.
[Features]
・Choose from either a voltage or current input type.
・20mA, 100mA, or 2000mA input current compatible options.
・Voltage input ranges from 5 to 700 V.
・12-48 VDC or 100-240 VAC power supply options available.
・Output options include RS232C, RS485, analog, BCD, photocoupler and relay contact comparison.
Configured Specifications
| Input Type | Voltage | Mounting Method | Panel Surface Mount |
|---|---|---|---|
| Panel Cut Dimension | [Other] 68 x 33 | Input Current(mA) | - |
| Input Voltage(V) | ±700.0 | Digits Displayed | 4 Digits |
| Dimension (D)(mm) | 118 | Dimension (W)(mm) | 72 |
| Dimension (H)(mm) | 36 | Power Supply(V) | DC12 to 48 |
| Output | Relay contact comparison output | Input | DC voltage measurement |
