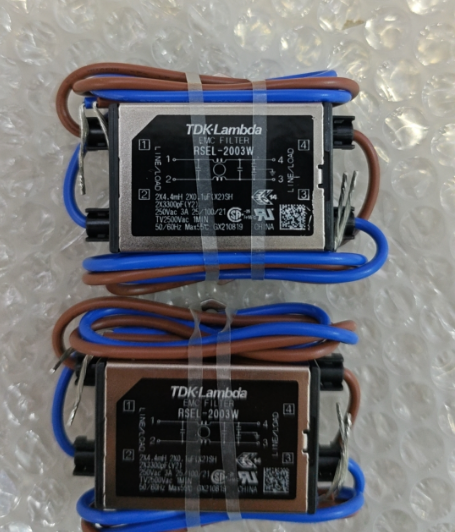

日本TDK-Lambda电源滤波器RSEL-2003W
发布时间：2024-07-15
日本TDK-Lambda电源滤波器RSEL-2003W
Electrical Characteristics
Rated Current
3A
Rated Voltage [AC]
250V
Rated Voltage [DC]
250V
Withstanding Voltage
AC2500V, 60s [line - earth]
Insulation Resistance (Min.)
100MΩ [DC500V, 1min.]
Leakage Current (Max.)
1mA [250V, 60Hz]
DC Resistance (Max.)
150mΩ
Common Mode Attenuation (Min.)
25dB (0.5MHz to 10MHz)
Differential Mode Attenuation (Min.)
25dB (0.5MHz to 30MHz)
Package Type & Size
Package / Mounting
Small size
Length(L)
50mm Nom. (1.97in Nom.)
Width(W)
45mm Nom. (1.77in Nom.)
Height(H)
20mm Nom. (0.79in Nom.)
Weight
61g Typ.
Other
Terminals
Wire
Operating Temp. Range
-25 to 85°C
Performance
Multipurpose
Function
Safety Standard
UL1283
CSA C22.2 No.8
EN60939-1
EN60939-2
