日本大力Maxpull手动绞盘GM-30-SI
发布时间：2024-07-18

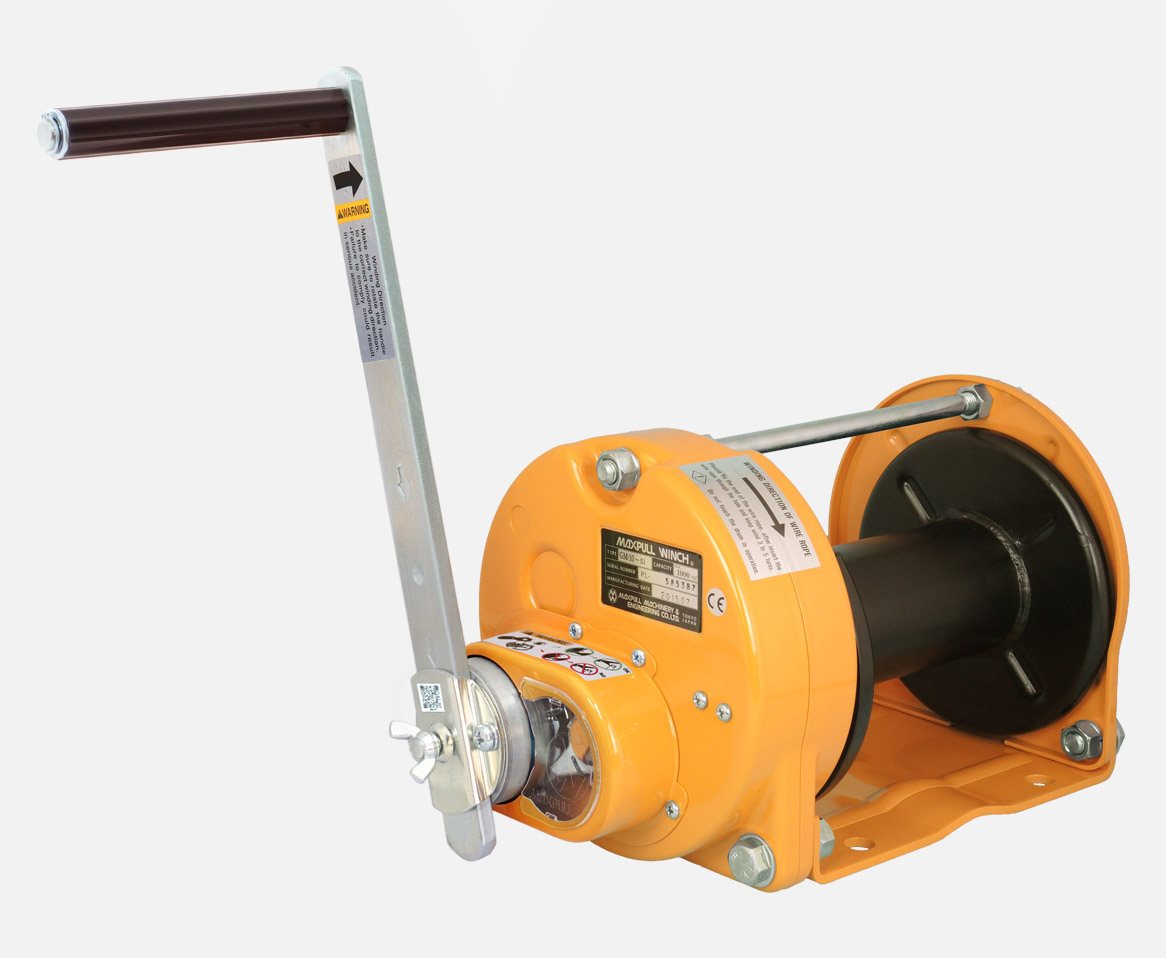

Model: GM-1-SI : 100kgf (220lbs)
| Model | GM-1-SI |
|---|---|
| Load Rating | 100kgf（220lbs) 4th Layers or Less |
| Drum Capacity | 6-Layers Winding φ5mm (6×19) x 35m (3/16inch (7×19) x 114ft) |
| Gear Ratio | 1 : 1 |
| Handle Force | 1st Layer：14.6kgf (32.2lbs) 3rd Layer：19.0kgf (41.9lbs) 4th Layer：21.2kgf (46.7lbs) |
| Handle Length (Effective Maximum) | 250mm (9.84inch) |
| Weight (Main unit + Handle) | 7.2 kg (15.9lbs) |

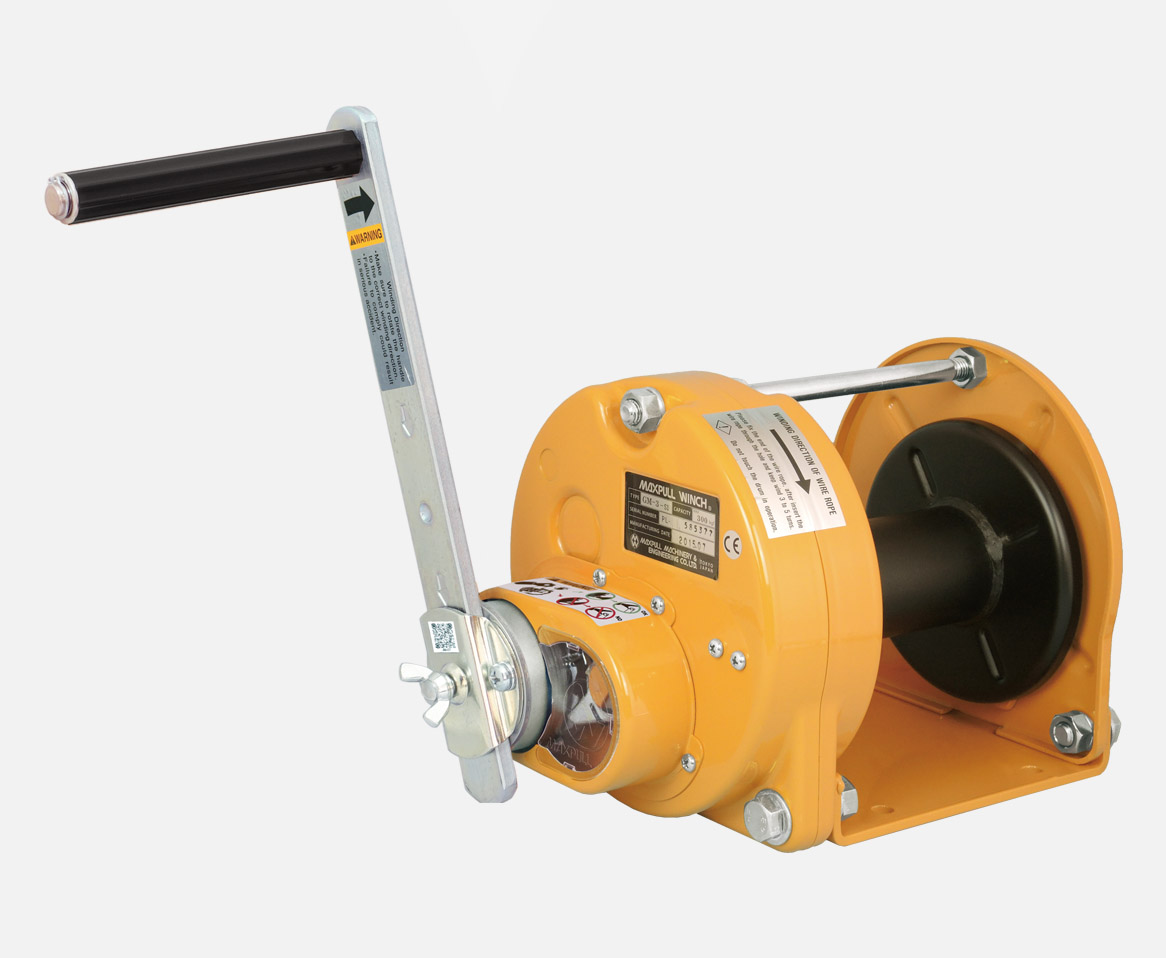

Model: GM-3-SI : 300kgf (660lbs)
| Model | GM-3-SI |
|---|---|
| Load Rating | 300kgf（660lbs) 5th Layers or Less |
| Drum Capacity | 6-Layers Winding φ6mm (6×37) x 32m (1/4inch (6×36) x 104ft) |
| Gear Ratio | 6.25 : 1 |
| Handle Force | 1st Layer : 7.7kgf (17.0lbs) 3rd Layer：10.5kgf (23.1lbs) 5th Layer：13.3kgf (29.3lbs) |
| Handle Length (Effective Maximum) | 250mm (9.84inch) |
| Weight (Main unit + Handle) | 14.1 kg (31.1lbs) |

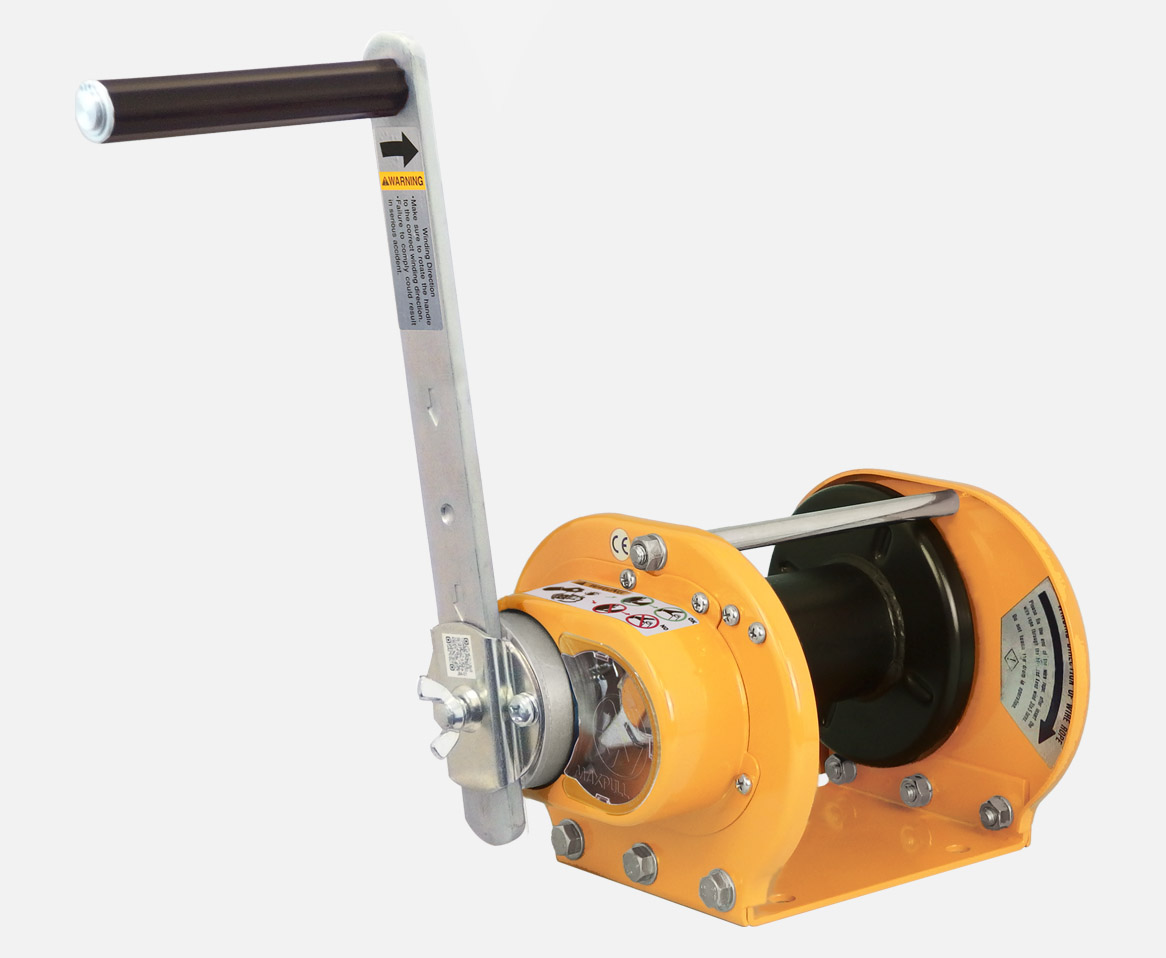

Model: GM-5-SI : 500kgf (1,100lbs)
| Model | GM-5-SI |
|---|---|
| Load Rating | 500kgf（1,100lbs) 5th Layers or Less |
| Drum Capacity | 6-Layers Winding φ6mm (6×37) x 40m (1/4inch (6×36) x 131ft) |
| Gear Ratio | 8.9 : 1 |
| Handle Force | 1st Layer：11.1kgf (24.5lbs) 3rd Layer：14.4kgf (31.8lbs) 5th Layer：17.7kgf (39.0lbs) |
| Handle Length (Effective Maximum) | 250mm (9.84inch) |
| Weight (Main unit + Handle) | 15.4 kg (34.0lbs) |

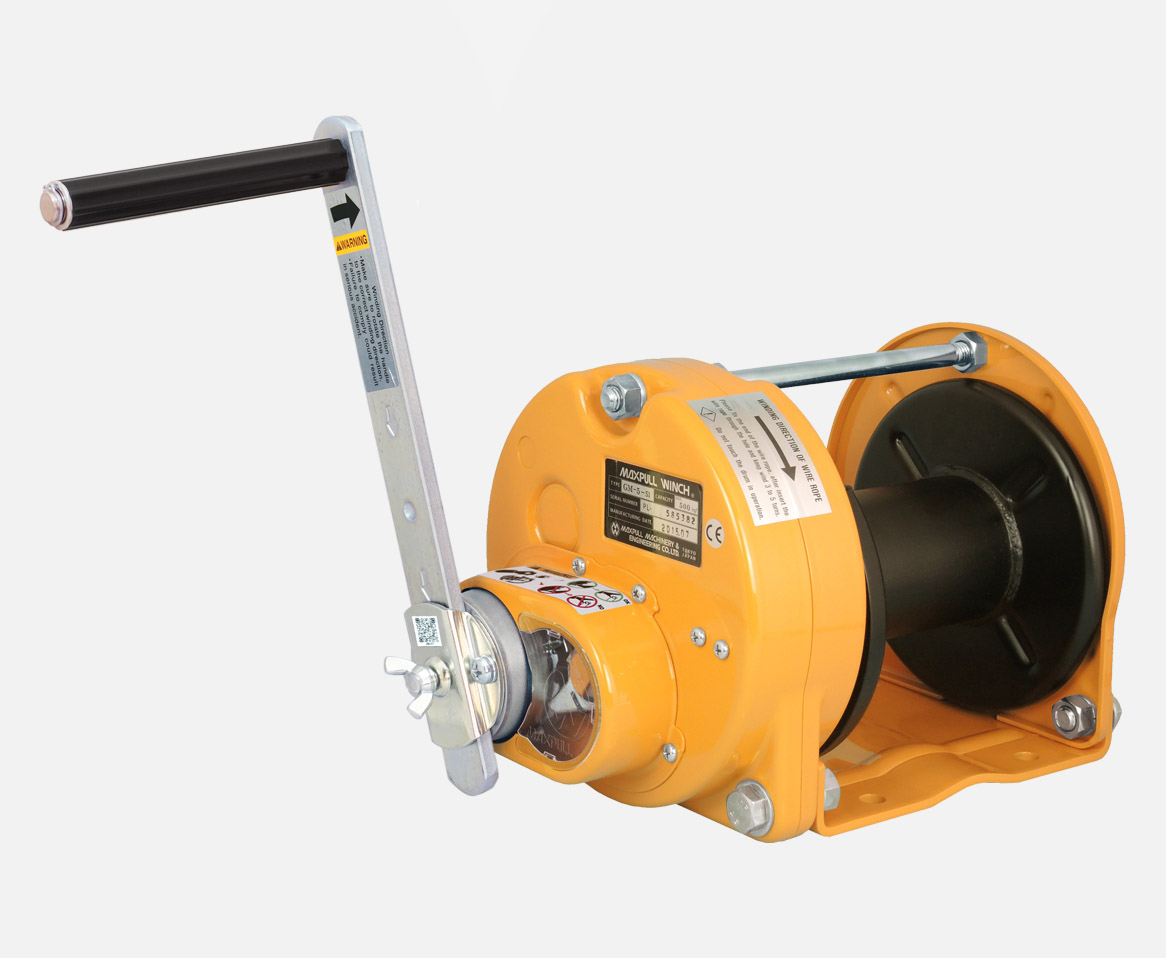

Model: GM-10-SI : 1,000kgf (2,200lbs)
| Model | GM-10-SI |
|---|---|
| Load Rating | 1,000kgf（2,200lbs) 3rd Layers or Less |
| Drum Capacity | 5-Layers Winding φ8mm (6×37) x 35m (5/16inch (6×36) x 114ft) |
| Gear Ratio | 12.6 : 1 |
| Handle Force | 1st Layer：13.5kgf (29.8lbs) 2nd Layer：16.0kgf (35.3lbs) 3rd Layer：18.5kgf (40.8lbs) |
| Handle Length (Effective Maximum) | 300mm (11.81inch) |
| Weight (Main unit + Handle) | 16.4 kg (36.2lbs) |

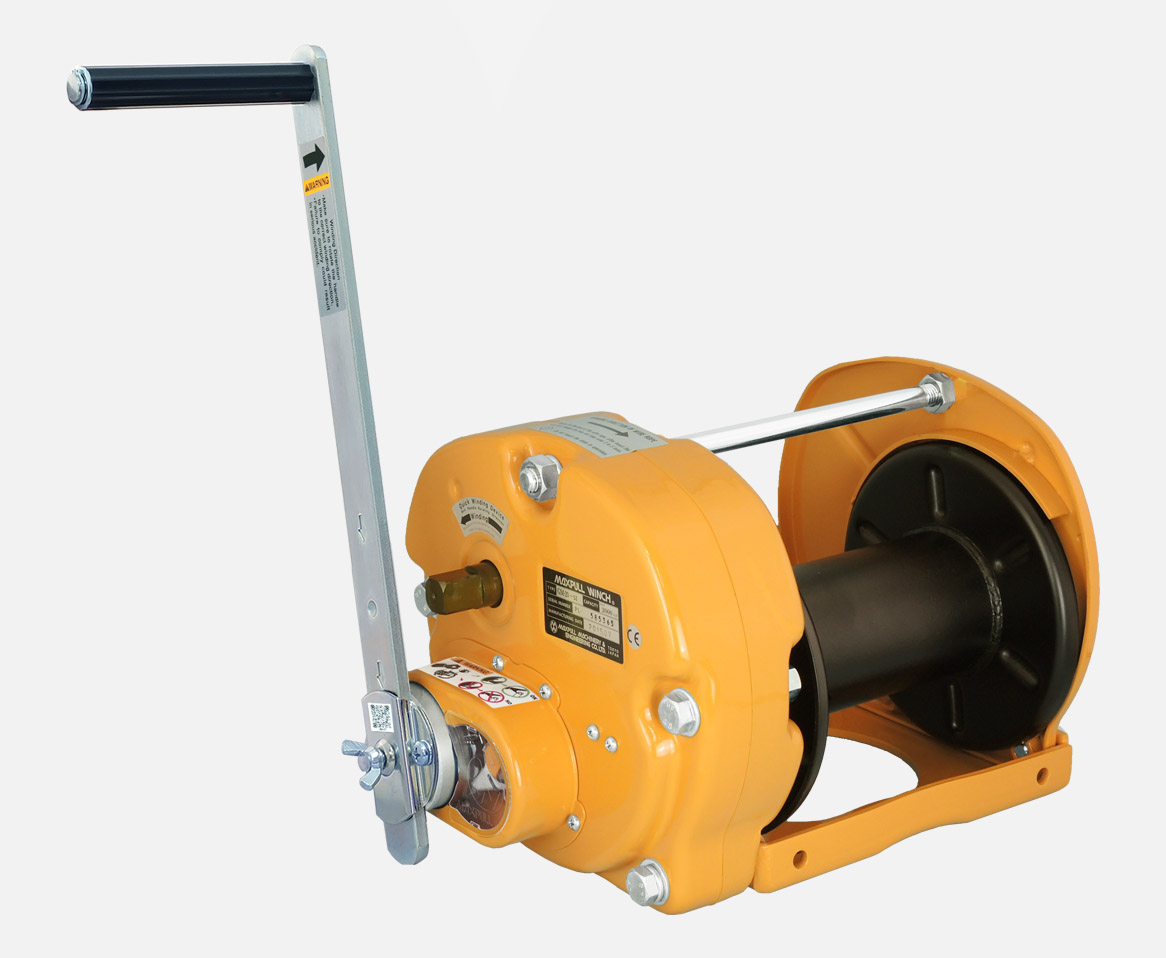

Model: GM-20-SI : 2,000kgf (4,400lbs)
| Model | GM-20-SI |
|---|---|
| Load Rating | Normal Winding: 2,000kgf（4,400lbs) Quick Winding: 400kgf（880lbs) 3rd Layers or Less |
| Drum Capacity | 5-Layers Winding φ9mm (6×37) x 38m (3/8inch (6×36) x 124ft) |
| Gear Ratio | Normal Winding 20:1 Quick Winding 4:1 |
| Handle Force | 1st Layer：16.0kgf (35.3lbs) 2nd Layer：18.9kgf (41.7lbs) 3rd Layer：21.8kgf (48.1lbs) |
| Handle Length (Effective Maximum) | 370mm (14.57inch) |
| Weight (Main unit + Handle) | 28.2 kg (62.2lbs) |

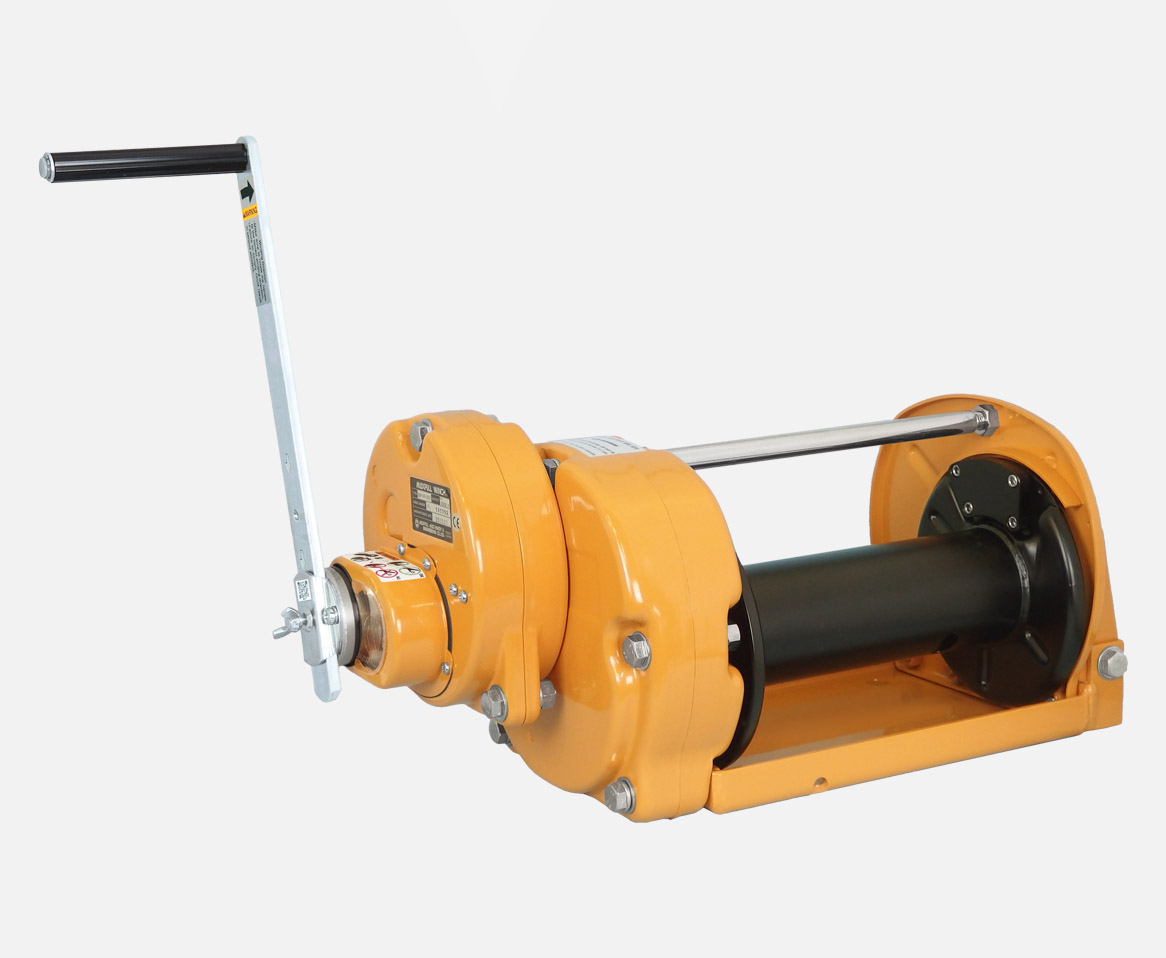

Model: GM-30-SI : 3,000kgf (6,600lbs)
| Model | GM-30-SI |
|---|---|
| Load Rating | 3,000kgf（6,600lbs) 3rd Layers or Less |
| Drum Capacity | 4-Layers Winding φ12mm (6×37) x 35m (7/16inch (6×36) x 114ft) |
| Gear Ratio | 35.5 : 1 |
| Handle Force | 1st Layer：13.9kgf (30.6lbs) 2nd Layer：17.2kgf (37.9lbs) 3rd Layer：20.5kgf (45.2lbs) |
| Handle Length (Effective Maximum) | 370mm (14.57inch) |
| Weight (Main unit + Handle) | 37.7 kg (83.1lbs) |
