日本SMC带导杆薄型气缸MGPM32-75Z-M9BWL
发布时间：2024-07-20
日本SMC带导杆薄型气缸MGPM32-75Z-M9BWL
日本SMC带导杆薄型气缸MGPM32-75Z-M9BWL
日本SMC带导杆薄型气缸MGPM32-75Z-M9BWL

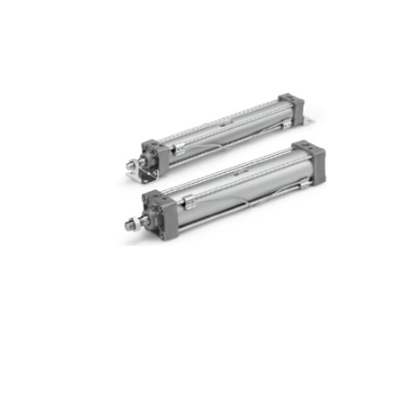

Air Cylinder (MDBB80-800Z-M9BL)
Standard, Double Acting, Single Rod, MB Series
Part Number: MDBB80-800Z-M9BL
A standard type double action, single rod cylinder.
Features
· A lightweight air cylinder with a weight reduced by a maximum of 10% by changing the cover shape.
· Part numbers are set for products with rod-end brackets and pivot brackets. (No need to order separately.)
*See the manufacturer's catalog for detailed specifications.
*Product pictures are representations. CAD data is not supported for some model numbers.
Caution
See catalog for specification details.
Product pictures are representations. CAD data is not supported for some model numbers.
Configured Specifications
Download| Cylinder (Tube) Inner Diameter(φ) | 80 | Stroke(mm) | 800 |
|---|---|---|---|
| Cylinder Operation Method | [Double Acting] Double Acting | Rod Operation Method | Double rod |
| Main Body Shape | Standard | Additional Function | Standard |
| Environment, Applications | Standard | End Locking | - |
| Valves | - | Cushion | Air cushion |
| Operating Pressure(MPa) | 0.05 to 1.0 | Specification | Built-in magnet |
