MT Series

Product TOP

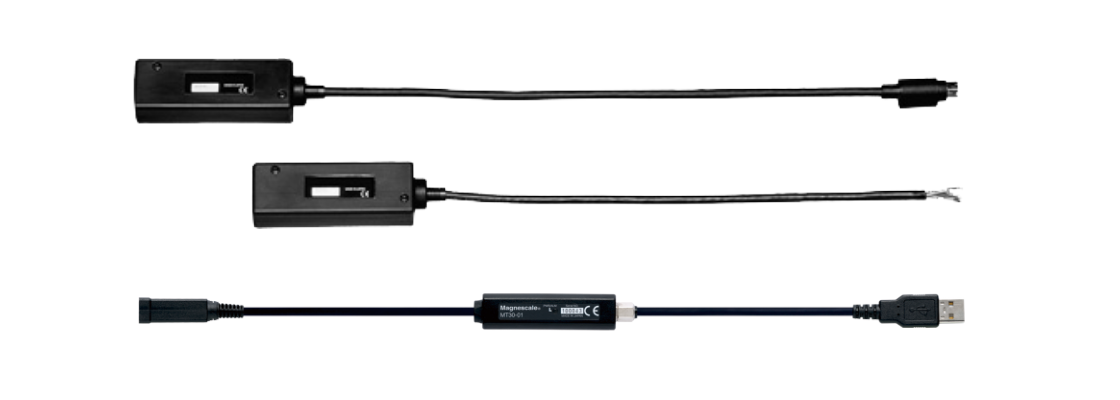

Interpolators for DT12/32/512 Series

• MT13: For connection to LT30 and MG80

• MT14: Unterminated cable A/B-quadrature output by line driver [EIA-422(RS-422) compliance]

• MT20: For connection to MF10

• MT30: For USB output

• Maximum resolution: :1μm(-01)、5μm(-05)、10μm(-10)(MT13/14 only)

• Specifications

  Specifications
  Magnescale reserves the right to change product specifications without prior notice.
  Model	MT13-01	MT13-05	MT13-10	MT14-01	MT14-05	MT14-10
  Compatible measuring unit	DT512, DT12/DT32
  Maximum response speed	100 m/min
  Maximum resolution	1μm	5μm	10μm	1μm	5μm	10μm
  Power voltage	DC5V±4%
  Power consumption	1.2 W (when output load of 120Ω is connected)
  Output format	Voltage differential line driver
  Operating temperature/humidity	0 to +50 °C (non condensing)
  Storage temperature/humidity	-10 to + 60℃ (20 to 90 %RH)
  Mass	Approx. 90g

  Specification
  Magnescale reserves the right to change product specifications without prior notice.
  Model	MT20-01	MT20-05
  Compatible measuring unit	DT512	DT12/DT32
  Maximum response speed	150 m/min
  Maximum resolution	1μm	5μm
  Power voltage	DC+10 to +30V
  Power consumption	1.2 W or less
  Operating temperature and humidity range	0 to +50 °C (No condensation)
  Storage temperature and humidity range	-10 to + 60 °C (90%RH or less)
  Mass	Approx. 50 g

  Specifications
  Magnescale reserves the right to change product specifications without prior notice.
  Model	MT30-01	MT30-05
  Compatible measuring unit	DT512	DT12/DT32
  Maximum respponse speed	150 m/min
  Maximum resolution	1μm	5μm
  Power voltage	DC5 V ±5%
  Power consumption	120 mA Max.
  Operating temperature and humidity range	0 to +50°C (No condensation)
  Storage temperature and humidity range	-10 to +60°C (90%RH or less)
  Mass	Approx. 50 g

• Dimensions

  Product name	2D	3D
  MT13	–	–
  MT14	–	–
  MT20	Download	Download
  MT30	–	–

• Instruction manual

  Product name	Japanese	English	Deutsch
  MT13 / MT14	Download	Download	Download
  MT20	Download	Download	–
  MT30	Download	Download	–

  *Please contact us if you cannot download the file.

• Accessory

  MT13

  Extension cable (Output for MT13)

  CE08-1,3,5,10,15	Extension cable for LT Series or MG Series (1, 3, 5, 10, 15m)
  CK-T12,13,14,15,16	Flex-resistant extension cable for LT series / MG series (1, 3, 5, 10, 15 m)
  CE29-003,01,03,05,10	Extension cable for LY series counter (0.3, 1, 3, 5, 10 m)

  MT30

  Extension cable

  CE38-01,02,04

  USB Extension for MT30 (1, 2, 4 m)
