日本池内喷嘴1/2M TF-BF 42-8-030 ABS
发布时间：2024-07-23

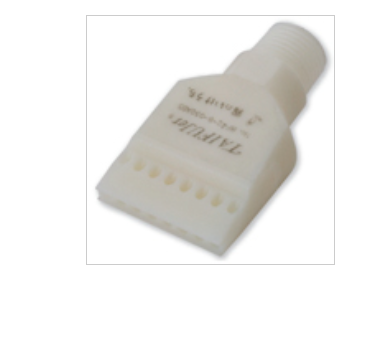

日本池内喷嘴1/2M TF-BF 42-8-030 ABS
Configured Specifications
| Spray Pattern | Straight | Air Source | Blower |
|---|---|---|---|
| Material | [Plastic] ABS Resin | Mounting Angle | Flat |
| Blow Type | Amplification type | Type | Air Nozzle |
| Applicable Fluid | Air, compressed air | Operating Pressure Range(MPa) | ～0.1 |
| Nominal Mounting Screw | R1/2 | Pore diameter (Orifice diameter)(mm) | 3.0 |
| Heat Resistant Temperature(℃) | 80 | RoHS | 10 |
Product Description
[Features]
· A uniform jet air nozzle with a jet width of 42 mm.
· TAIFUJet uses a blower whose energy cost is about 1/3rd that of compressor air.
· Unique design that combines air amplification, quietness, uniformity, etc.
· See the manufacturer's catalog for details on reference images.
