日本SSD西西蒂除静电器BF-X2MC
发布时间：2024-07-30

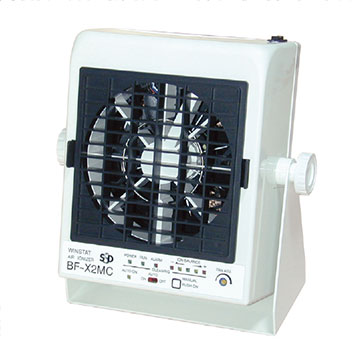

日本SSD西西蒂除静电器BF-X2MC
BF-X2MC
WINSTAT Series
Equipped with HDC-AC and supports automatic cleaning！
Cleaning is performed with a built-in brush, and there is almost no need for maintenance.
Product features
Model BF-X2MC is update model of BF-2ZC with automatically cleaning emitter function as maintenance free performance. Automatically emitter cleaning (once per day), and manual cleaning available Ion Balance indicator.
With SSD HDC-AC Technology, keep long stability performance.
Safety function with Pulse discharge detection, Over current ditection.
With alternative front louver, you can use for long distance or wide area ionization.
Easy angle adjustable with locked for each angle.
Alarm function: High voltage abnormal and locked Fan with alarm output.

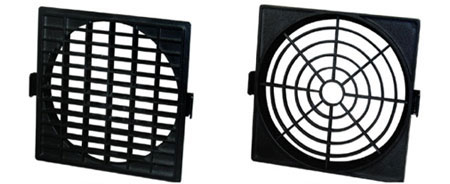

(Left) ：Straight Louver
(Right)：Wide angle Louver
Options

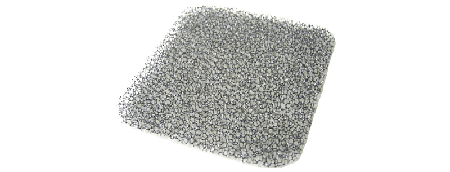

Filter for replacement(10 sheets package)(OBF-F2MA-1-10)

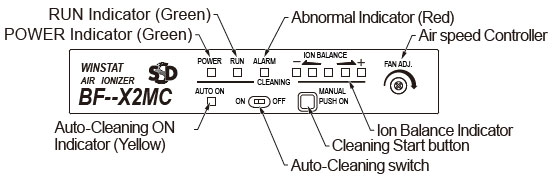

Indicator Panel
Specification
| Model | BF-X2MC |
|---|---|
| Input Power | DC24V (AC Adaptor AC100~240V avairable) |
| Capacity | 18VA |
| Output Voltage | ±7,500Vo-p |
| Ion Balance | Below ±5V (Distance at 300mm) |
| Air Volume | 1.4 to 3.2m3 / min |
| Air Speed | 1.8 to 3.6m / sec (with Straight Louver at 300mm center) 0.4 to 0.6m / sec (with wide angle louver at 300mm center) |
| Ozone density | Below 0.004ppm (Distance at 150mm) |
| Available environment | 0 to 40℃ / 15 to 85% RH (without condensation) |
| Filter | Pre-filter level |
| Signal Output | ALARM: MOS FET Relay Non-Voltage contact(NC)(HV abnormal, or Fan abnormal: OFF) ION BALANCE: MOS FET Relay Non-Voltage contact(NC)(Ion Balance abnormal: OFF) |
| Dimensions | 150×182×75mm (W×H×D) |
| Weight | Approx 1,200g (with stand frame) |
| Sound level | 59dB(A) (Distance:1m) |
| Accessories | Operation Manual, AC Adaptor,Wide angle louver, Signal output cable |
| Optional parts | Filter(10pcs) |
