日本MAGNESCALE索尼数字测量器DK812SBFLR5
日本MAGNESCALE索尼数字测量器DK812SBFLR5
日本MAGNESCALE索尼数字测量器DK812SBFLR5
日本MAGNESCALE索尼数字测量器DK812SBFLR5
Product TOP

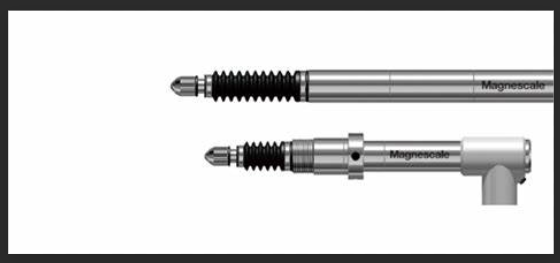

Slim shape with stem diameter of Φ8 mm and high durability ball spline bearing.
Our unique signal processing technology enables measurements that require high accuracy and real-time performance.
Measuring range: 5 mm, 12 mm, 30 mm
Maximum resolution: 0.1 µm, 0.5 μm
Accuracy: 1 µm p-p to 1.7 µm p-p (Depends on the model)
Maximum response speed: 80 m/min (resolution 0.1 µm), 250 m/min (resolution 0.5 µm)
Bearing structure: Improved sliding performance through the use of highly durable ball spline bearings
High durability: 320 million sliding cycles or more (under continuous evaluation as of January 2021)
Protection grade: IP67 (straight type / right angle type with air tube)
Built-in reference point
Output signal: A/B/reference point (Voltage-differential line driver output)
Flange type is also available for strong fixing.
| Specifications | ||
|---|---|---|
*1 Values in parentheses show those of type B. *2 Excluding the interpolation box and connector *3 When Φ4 mm tube is used in the right angle type *4 Excluding interpolation box and connector *5 There are some differences in the shape and dimensions from the previous DK800 series models. Magnescale reserves the right to change product specifications without prior notice. | ||
| Model | High resolution model | General purpose resolution model |
| DK805SAR, DK805SALR, DK805SAFR, DK805SAFLR, DK805SBR, DK805SBLR, DK805SBFR, DK805SBFLR | DK805SAR5, DK805SALR5, DK805SAFR5, DK805SAFLR5, DK805SBR5, DK805SBLR5, DK805SBFR5, DK805SBFLR5 | |
| Measuring range | 5 mm | |
| Maximum resolution | 0.1 µm | 0.5 µm |
| Accuracy (at 20 °C) | 1 µm p-p | 1.5 µm p-p |
| Measuring force (at 20 °C) | Upward: 0.35 ±0.25 N | |
| Horizontal: 0.40 ±0.25 N | ||
| Downward: 0.45 ±0.25 N | ||
| Operating temperature | 0 to +50 °C (no condensation) | |
| Storage temperature | -20 to +60 °C (90 %RH or less) | |
| Maximum response speed *1 | 80 m/min (42 m/min) | 250 m/min (100 m/min) |
| Spindle driving | Spring push (All model) Air drive by vacuum suction is possible (DK805S*LR*) | |
| Reference point response speed | Same as maximum response speed noted above | |
| Reference point | at 1 mm ±0.5 mm position of spindle movement | |
| Protection grade *2 | Straight type: IP67 / Right angle type: IP64 (IP67*3 ) | |
| Vibration resistance | 100 m/s2 (20 to 2,000 Hz) | |
| Impact resistance | 1,000 m/s2 (11 ms) | |
| Power supply | DC 5 V ±5 % | |
| Power consumption | 1 W | |
| Output | A/B/reference point, voltage-differential line driver output (conforming to EIA-422) | |
| Mass*4 | Approx. 30 g | |
| Feeler | Carbide ball tip, mounting screw M2.5 | Steel ball tip, mounting screw M2.5 |
| Output cable length | 2.5 m | |
| Accessories | Instruction manual, +P M4 x 5 screws (2 pc), tightening nut, clamp spanner, wave washer, mounting pins 1 each (for DK8**S*F** only), hose elbow (for DK8**S*L** only), spanner, supplement | |
| Specifications | ||||
|---|---|---|---|---|
*1 Excluding interpolation box and connector *2 When Φ4 mm tube is connected for right angle type *3 Excluding cable section and interpolation box Magnescale reserves the right to change product specifications without prior notice. | ||||
| Model | High resolution models | General purpose resolution models | ||
| DK812SAR DK812SALR DK812SAFR DK812SAFLR DK812SAVR | DK812SBR DK812SBLR DK812SBFR DK812SBFLR DK812SBVR | DK812SAR5 DK812SALR5 DK812SAFR5 DK812SAFLR5 DK812SAVR5 | DK812SBR5 DK812SBLR5 DK812SBFR5 DK812SBFLR5 DK812SBVR5 | |
| Measuring range | 12 mm | |||
| Maximum resolution | 0.1 µm | 0.5 µm | ||
| Accuracy (at 20 °C) | 1 µm p-p | 1.5 µm p-p | ||
| Measuring force (at 20 °C) | Upward: 0.4 ±0.3 N 0.6 ±0.5 N (Pneumatic push type) Horizontal: 0.5 ±0.3 N 0.7 ±0.5 N (Pneumatic push type) Downward: 0.6 ±0.3 N 0.8± 0.5 N (Pneumatic push type) Pneumatic push: 0.055 MPa | |||
| Maximum response speed | 80 m/min | 42 m/min | 250 m/min | 100 m/min |
| Reference point | at 1 mm ±0.5 mm position of spindle movement | |||
| Reference point response speed | Same as maximum response speed noted above | |||
| Output | A/B/reference point, voltage-differential line driver output (conforming to EIA-422) | |||
| Spindle driving | Spring push（DK812SAR/SAFR/SBR/SBFR/SAR5/SAFR5/SBR5/SBFR5） Pneumatic push (DK812SAVR/SBVR/SAVR5/SBVR5) Spring push / Vacuum suction (DK812SALR/SAFLR/SBLR/SBFLR/SALR5/ SAFLR5/SBLR5/SBFLR5) | |||
| Protection grade*1 | Straight type: IP67, right angle type: IP64 (IP67*2) | |||
| Vibration resistance | 100 m/s2 (20 to 2,000 Hz) | |||
| Impact resistance | 1,000 m/s2 (11 ms) | |||
| Operating temperature | 0 to +50 °C (no condensation) | |||
| Storage temperature | −20 to +60 °C (90 %RH or less) | |||
| Power supply | 5 VDC ±5 % | |||
| Power consumption | 1 W | |||
| Mass*3 | Approx. 30 g | |||
| Output cable length | 2.5 m | |||
| Feeler | Carbide ball tip, Mounting screw M2.5 | Steel ball tip, Mounting screw M2.5 | ||
| Accessories | Instruction manual, +P M4 × 5 screw (2 pc), tightening nut, clamp spanner, wave washer, mounting pin 1 each (DK8**S*F** only), hose elbow (DK8**S*L** only), spanner | |||
