日本NIRECO电动执行器K12-150-20/K12-150-07
发布时间：2024-08-03
日本NIRECO电动执行器K12-150-20/K12-150-07
Overview
We have translatory and rotary models in the K12 series, and both types are strengthened to withstand thrust load.
In addition, they are constructed to control thrust direction as much as possible and combining the translatory motor-driven actuators with planetary gear and ball screws in a single structure provides a strong and precise actuator.

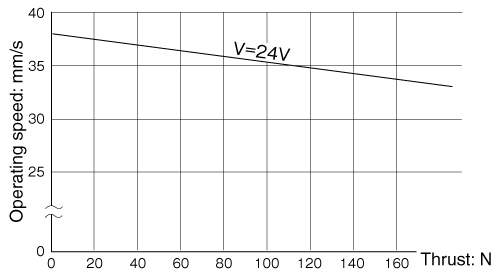

Load Characteristics
仕 様
Linear model
Rated Speeds and speeds shown are when unloaded.Model Thrust (N) Stroke (mm) Speed (mm/s) Mass (kg) K12-80-07 300 80 8* 3.1 K12-80-20 150 80 40* 3.0 K12-150-07 300 150 8* 3.7 K12-150-20 150 150 40* 3.7 Rotary model
Rated Speeds and speeds shown are when unloaded.Model Tolque (N cm) Rated Speed (rpm) Gear ratio Mass (kg) Rated voltage (DCV) K12-00-70 120 80* 27.04 : 1 1.2 24 (1A) K12-00-450 30 450* 5.2 : 1 1.1 24 (1A)
