日本PISCO SFT氟素树脂气管SFT0860
发布时间:2024-08-03

日本PISCO SFT氟素树脂气管SFT0860


日本PISCO SFT氟素树脂气管SFT0860

Tube

SFT0860-100-CB

Superior chemical and weather resistance makes Fluororesin Tube best suited for chemical, food-processing, medical care and semiconductor applications.
Available in 5 colors and 12 sizes. (Inch sizes available)

  • Tube color

  • Clear blue

  • Weight

  • 5000.0g

  • Shipping unit

  • 1roll

Bending radius

    Catalog

    SFT0860-100-CB

    Port sizeSpecificationsAdvantagesDetailed Safety InstructionsFrequently Asked Questions (FAQ)Products with Different OptionsProducts with Different SizesRelated Products

    Port size

    mm size

    O.D. x I.D.(φmm)8x6

    Specifications

    Fluid mediumAir, Water (Conditional *1), Others such as chemicals (Conditional *1)
    Max. operating pressure (65%RH at 20º)1.0MPa *2
    Max. vacuum-100kPa
    Operating temperature range-65~260ºC (No freezing)

    Warning

    *1. Adhere to the following conditions when the fluid medium is water. or any liquids

    Surge pressure must be controlled lower than max. operating pressure when using water or any liquids as a fluid medium.

    Tap water in Japan, which is soft water (low mineral content) can be used. Carry out the evaluation under an actual operating condition for using other kind of water.

    Be sure to place Insert Ring (WR) into the tubing end when the the tubing is inserted into Push-in Fitting with water or any liquids oil as a fulid medium.

    As for chemicals, mixed gas, etc., they may vary depending on the conditions of use, so please check the compatibility of our specifications before use.

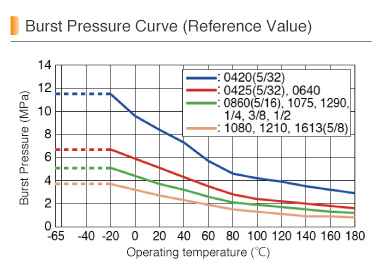

    *2. The value of max. operating pressure is measured at 20ºC at 65%RH. When the tubing is used in different conditions, consider a safety ratio of the pressure with an enough margin, referring to Burst Pressure Curve.

    Advantages

    Excellent in chemical and weather resistance. Good for use in chemical, food, medical and semi-conductor industries

    Extruded from fluoropolymer (PFA) which is excellent in chemical resitance

    Superior interior surface smoothness, transparency and purity

    Extensive service temperature range
