URYU Angle Head Air Nutrunner, 37 - 60 Nm, 1/2 in. square drive

Angle Head Air Nutrunner, 37 - 60 Nm, 1/2 in. square drive, model# UAN-701R-30C by URYU; available to order from Flexible Assembly Systems. Do you see this Air Nutrunner available elsewhere for a lower price? Contact customer service on price matching!

UAN-701R-30C by URYU

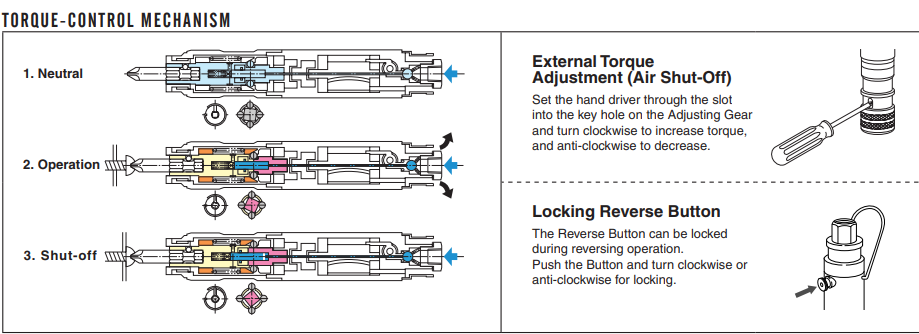

Designed for fastening in tight quarters or applications not served well by a pulse tool. The UAN Series transfers torque through beveled angle gears, continuously driving the fastener. When the resistance to rotation overcomes the spring resistance on the clutch, the tool will disengage at the adjusted torque value. Low reaction force characteristics on hard joints make it comfortable for the operator to use. Ideal for applications ranging from 6 – 60 Nm (4 – 44 ft-lb).

Designed for fastening in tight quarters or applications not served well by a pulse tool. The UAN Series transfers torque through beveled angle gears, continuously driving the fastener.

Features & Benefits

• High power to weight ratio

• Wide variety of speeds and torque ranges

• Instant shut-off

• Light weight

Manufacturer

URYU

Model

UAN-701R-30C

Stock Code

C

Air Inlet

1/4 in.

Drive size

38'' square

Free Speed (RPM)

600

Length (In)

17.9

Length (mm)

455

Max Air Consumption (cfm)

31.6

Max Free Speed (rpm)

300

Series

UAN

Side to Center (in)

0.5

Side to Center (mm)

14

Torque Range (Ft Lbs)

14.5 - 23.1

Torque Range (Nm)

20 - 31

Weight

5.3 lbs
