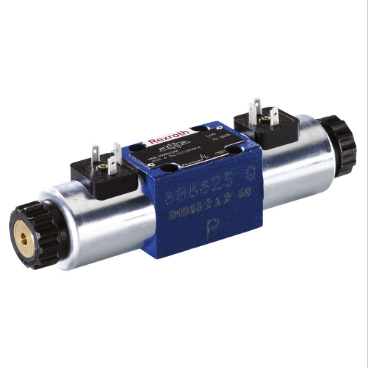

日本力士乐R900722567短管阀4WE6J6X/EW100N9DJ
发布时间：2024-08-05
Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol.
Spool valve
Direct actuated
With fixing pin ISO 8752-3x8-St
Product attributes
Connection diagram
ISO 4401-03-02-0-05
Product family
WE6../E
Operating pressure, max. [bar]
350
Max. flow [l/min]
60
Spool symbol
Symbol J
Type of connection
Subplate mounting
Size
6
Type of actuation
with solenoid actuation
Number of ports
4
Number of switching positions
3
Supply voltage
110…120 VAC
Electrical connector
Connector, 3-pole (2 + PE)
Electrical connection description
Connector 3-pole (2 + PE) according to EN 175301-803
Conformity description
CE – Low-Voltage Directive 2014/35/EU
Hydraulic fluid
HL,HLP,HLPD,HVLP,HVLPD,HFC
Seals
NBR
Weight [kg]
1.72
