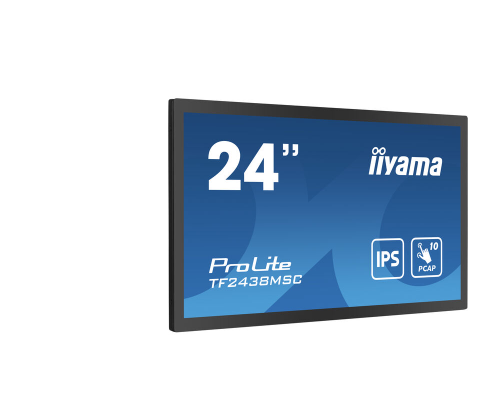

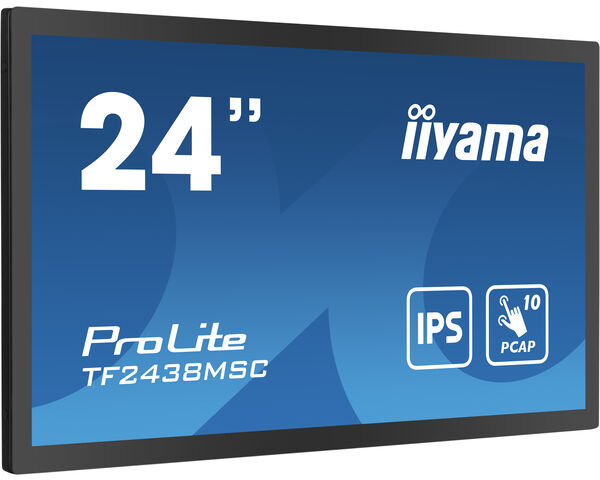

PROLITE TF2438MSC-B1
23.8” 10pt Optical Bonded PCAP Open Frame Touch monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing
The Full HD (1920x1080) Open Frame monitor ProLite TF2438MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water. The ProLite TF2438MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for kiosk systems, retail and interactive digital signage installations.

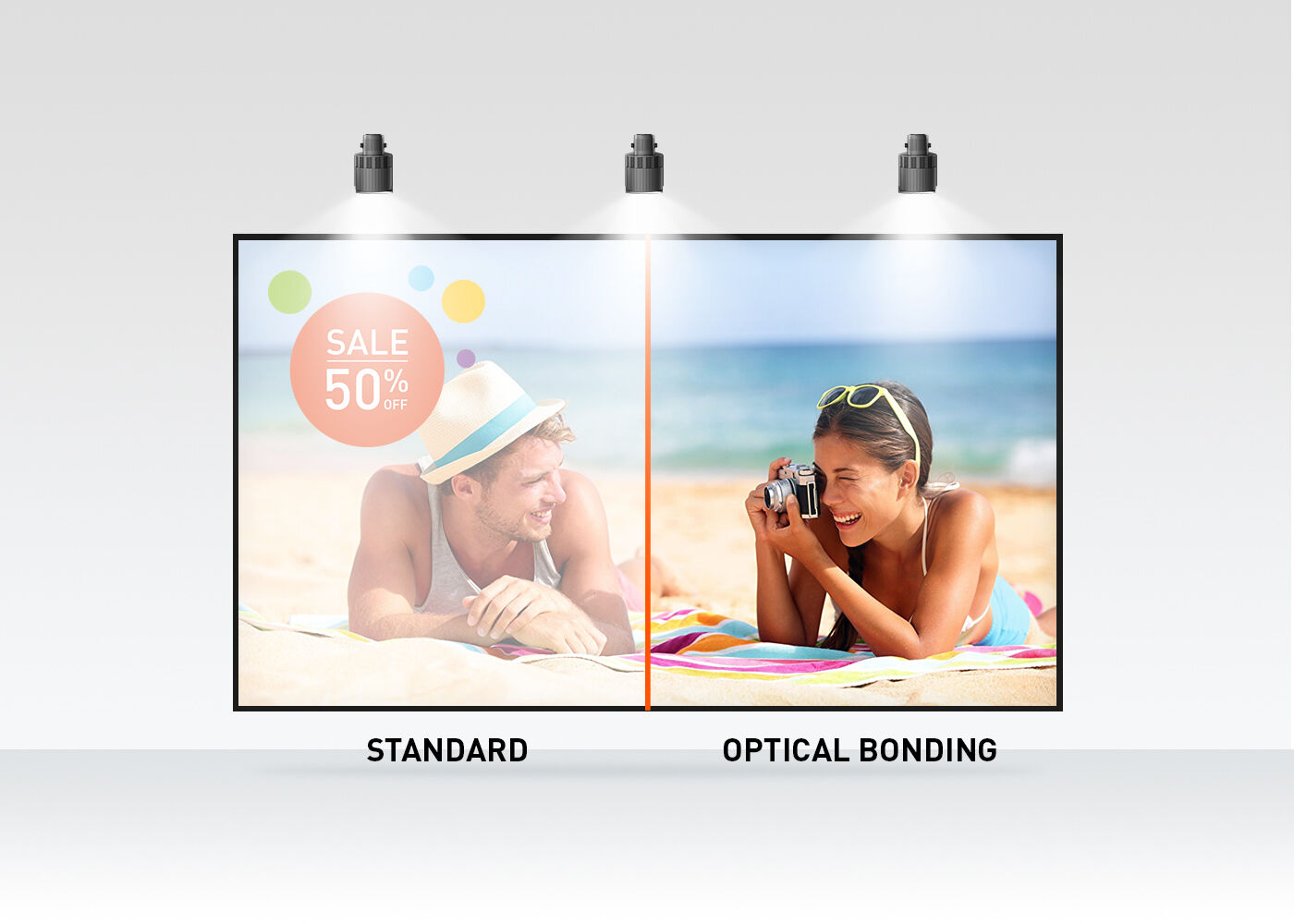

OPTICAL BONDED PCAP
The optical bonded projective capacitive (PCAP) touch technology reduces the air gap between the touch layer and the display making the touch response more accurate. It improves also the visual quality by reducing reflections and glare. In addition the display is protected against dust and potential moisture development.
Design | Edge to edge glass, Open Frame |
Diagonal | 23.8", 60.5cm |
Panel | IPS |
Native resolution | 1920 x 1080 (2.1 megapixel Full HD) |
Aspect ratio | 16:9 |
Panel brightness | 600 cd/m² |
Brightness | 525 cd/m² with touch |
Light transmittance | 87% |
Static contrast | 1000:1 |
Response time (GTG) | 5ms |
Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
Colour support | 16.7mln |
Horizontal Sync | 30 - 83kHz |
Viewable area W x H | 527 x 296.5mm, 20.7 x 11.7" |
Bezel width (sides, top, bottom) | 17.25mm, 20.3mm, 20.3mm |
Pixel pitch | 0.275mm |
Bezel colour and finish | black, matte |
