日本OMRON欧姆龙双头电缆F39-JD3B/5B/7B/10B/15B/20B
发布时间：2024-08-17
日本OMRON欧姆龙双头电缆F39-JD3B/5B/7B/10B/15B/20B
Double-Ended Cable (2 covers per set, one for emitter and one for receiver) *
Control unit for connection with F3SP-B1P, to extend the length under series connection
| Appearance | Cable length | Specifications | Model |
|---|---|---|---|
 | 0.5 m | M12 connector (8-pin) | F39-JDR5B |
| 1 m | F39-JD1B | ||
| 3 m | F39-JD3B | ||
| 5 m | F39-JD5B | ||
| 7 m | F39-JD7B | ||
| 10 m | F39-JD10B | ||
| 15 m | F39-JD15B | ||
| 20 m | F39-JD20B |

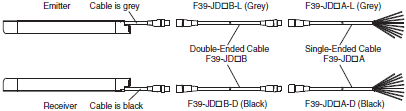

* The cable for emitter and the cable for receiver are available separately. Add '-L' for emitter or '-D' for receiver to the end
of the model number when you order.
Double-Ended Cable for Emitter: F39-JD[]B-L, Double-Ended Cable for Receiver: F39-JD[]B-D
Note: To extend the cable length to 20 m or more, use the Double-Ended Cables in combination.
Example: When using a cable of 30 m, connect the F39-JD10B Double-Ended Cable with the F39-JD20B Double-
Ended Cable.
