日本IIYAMA饭山液晶显示屏T2252MSC-W2
日本IIYAMA饭山液晶显示屏T2252MSC-W2

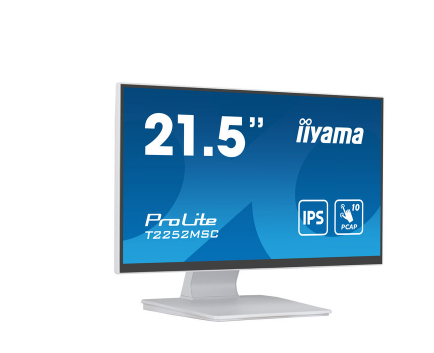

PROLITE T2252MSC-W2
21.5” PCAP 10pt touchscreen monitor featuring IPS panel technology, Edge-to-Edge glass design and anti fingerprint coating
With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2252MSC-W2 delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition, the edge-to-edge glass and ultra slim design creates an eye-catching finish. The ProLite T2252MSC-W2 is the ideal solution for interactive signage, instore retail, POS and interactive presentations.
Available also in black: ProLite T2252MSC-B2
O
TECHNICAL SPECIFICATION
DISPLAY CHARACTERISTICS
| Design | Ultra thin bezel |
| Diagonal | 21.5", 54.5cm |
| Panel | IPS |
| Native resolution | 1920 x 1080 (2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Panel brightness | 250 cd/m² |
| Brightness | 225 cd/m² with touch |
| Light transmittance | 90% |
| Static contrast | 1000:1 |
| Response time (GTG) | 5ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 16.7mln |
| Horizontal Sync | 30 - 83kHz |
| Viewable area W x H | 478.6 x 260mm |
| Pixel pitch | 0.249mm |
| Bezel colour and finish | white, matte |
TOUCH
| Touch technology | projective capacitive |
| Touch points | 10 |
| Touch method | stylus, finger, glove |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Palm rejection | yes |
INTERFACES / CONNECTORS / CONTROLS
| Digital signal input | HDMI x1 DisplayPort x1 |
| Audio output | Mini jack x1 Speakers 2 x 1W |
| HDCP | yes |
| USB HUB | x2 (USB 3.2 Gen 1 ( 5Gbps, 5V, 900mA)) |
FEATURES
| Extra | Anti-fingerprint coating, touch support with gloved hand (thickness +2mm) |
| Glass hardness | 7H |
| OSD key lock | yes |
GENERAL
| OSD languages | EN |
| Control buttons | Joystick: right/menu/enter, left/input/exit, up/eco, down, power |
| User controls | picture adjust (brightness, contrast, i-Style, adv. contrast, ECO, OD, X-Res), color settings (gamma, rgb range, color temp.), image settings (video mode adjust, blue light reducer, sharp & soft), OSD (horizontal position, vertical pos., time, background), extra (reset, dcc/ci, signal select, volume, mute, opening logo, led, touch switch) |
| Convenience | Kensington-lock™ prepared |
| Blue light reducer | yes |
| Plug&Play | DDC2B |
MECHANICAL
| Tilt angle | 90° up; 5° down |
| VESA mounting | 100 x 100mm |
ACCESSORIES INCLUDED
| Cables | power, USB, HDMI |
| Guides | safety guide |
| Cable cover | yes |
POWER MANAGEMENT
| Power supply unit | internal |
| Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 11W typical, 1.5W stand by, 0.3W off mode |
SUSTAINABILITY
| Regulations | CE, RoHS support, ErP, WEEE, REACH |
| Energy efficiency class (Regulation (EU) 2017/1369) | C |
| REACH SVHC | above 0.1%: Lead |
DIMENSIONS / WEIGHT
| Product dimensions W x H x D | 493.5 x 361.5 x 239.5mm |
| Weight (without box) | 4.5kg |
| EAN code | 4948570122059 |
