日本Magnescale索尼磁栅尺GB-050ER/GB-010ER
Product TOP

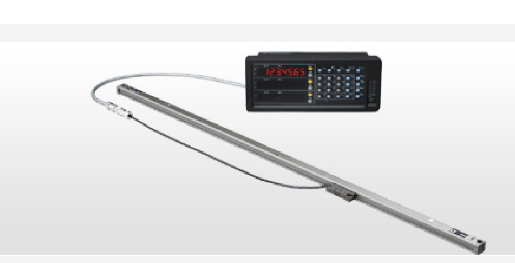

The GB-ER series combines original Magnescale technology and legendary durability with a built-in reference point.
Excellent durability against workshop conditions – resistant to oil, dirt, shock and vibration.
Compact design for a space-saving installation.
Accuracy: (5+5L/1000)μm
Resolution: 0.5μm
Simple structure should be conducive to long life.
Magnescale reserves the right to change product specifications without prior notice.
Specifications
Specifications Model GB-ER(SR138R) Measuring length(L:mm) 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 750, 850, 950, 1050, 1250, 1400, 1600, 1850, 2050, 2200 Scale length Overall length(mm) L+104mm(50～200mm), L+120mm(250～2200mm) Maximum travel length(mm) L+14mm(50～200mm), L+30mm(250～2200mm) With or without Centerfootplate None(50～950mm), Included(1050～2200mm) Mounting hole pitch L+91mm(50～200mm), L+107mm(250～2200mm) Accuracy(20℃) (5+5L/1000)μm Reference point Standard:Center point Allowable face flatness ±0.1mm Expansion coefficient (11±1)×10-6/℃ Operating temperature 0～40℃ Storage temperature -20～50℃ Head cable length 0.3m Cable length 3m Protective design grade Scale: IP65 Interface unit: IP30 Output signal Output signal A/B quadrature signal, Z signal Power supply DC+5V±5% Connector D-sub 9 pin Resolution 0.5μm Response speed Scale signal 60m/min Reference signal 60m/min Maximum consumption current 200mA Dimensions
Product name 2D GB-005ER Download GB-010ER Download GB-015ER Download GB-020ER Download GB-025ER Download GB-030ER Download GB-035ER Download GB-040ER Download GB-045ER Download GB-050ER Download GB-055ER Download GB-060ER Download GB-065ER Download GB-075ER Download GB-085ER Download GB-095ER Download GB-105ER Download GB-125ER Download GB-140ER Download GB-160ER Download GB-185ER Download GB-205ER Download GB-220ER Download Instruction manual
Product name Japanese English Deutsch Simplified Chinese GB-ER(SR138R) Download Download Download Download
