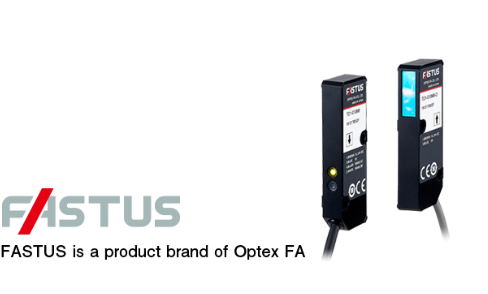

Through-beam Edge Laser SensorsTD1 Series
DOWNLOAD
Edge Position Measurement for Any Workpiece
Suitable for edge measurement and width/gap measurement
Light axis alignment function for easy installation
Easily readable amplifier unit
Sold separately: CDA-DM2
Lineup
| Type | Measurement range / Distance between heads | Repeatability | Serial interface | Connection type | Model |
|---|---|---|---|---|---|
| Through-beam |  | ±4 μm | RS-485 | Pig tail type | TD1-010M8 |
Specifications
| Model | TD1-010M8 | |
|---|---|---|
| Measurement range | Edge: ±5 mm, width: 10 mm | |
| Distance between heads | Max. 300 mm | |
| Light source | Medium (Wavelength) | Red semiconductor laser (Wavelength: 660 nm) |
| Maximum output | 390 μW | |
| Laser class | Class 1 (IEC/JIS)/Class I (FDA)*1 | |
| Spot size | 3 × 14 mm | |
| Linearity | With a distance between heads of 100 mm:±0.4% of F.S. (±40 μm) | |
| Repeatability*2 | ±4 μm | |
| Sampling period | 500 μs | |
| Temperature drift | ±0.02% of F.S./°C | |
| Indicators | [Emitting head] Power indicator: Green [Receiving head] Power indicator: Green, Alarm indicator: Red | |
| Serial interface | RS-485 | |
| Supply voltage | 12 to 24 VDC ±10% | |
| Current consumption | Emitting head: 20 mA or less (at 12 VDC) Receiving head: 80 mA or less (at 12 VDC) | |
| Connection type | Pig tail type: Cable with M8, 4-pin connector, 300 mm length | |
| Environmental resistance | Ambient temperature/ humidity | -10 to +50°C / 35 to 85% RH (no freezing or condensation) |
| Storage temperature/ humidity | -20 to +60°C / 35 to 85% RH (no freezing or condensation) | |
| Ambient illuminance | Sunlight: 10,000 lx or less, Incandescent lamp: 3,000 lx or less | |
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions | |
| Shock resistance | Approx. 50 G (500 m/s2), 3 times in each of the X, Y, and Z directions | |
| Protection circuit | Reverse connection protection | |
| Degree of protection | IP50 | |
| Applicable regulations | EMC | EMC directive (2014/30/EU) |
| Environment | RoHS directive (2011/65/EU), China RoHS (Directive No. 32) | |
| Safety | FDA regulations(21 CFR 1040.10 and 1040.11)*3 | |
| Applicable standards | EN60947-5-2 | |
| NRTL Certification | Recognized Components Proximity Switch Certified for US and Canada. | |
| Material | Housing: Aluminum die cast, Emitting/receiving part: Glass | |
| Weight | Emitting head, receiving head: 30 g each (including 300 mm connector cable) | |
*2 With an averaging count of one.
*3 Excluding differences in Laser Notice No. 56.
