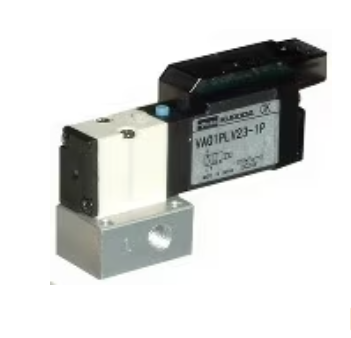

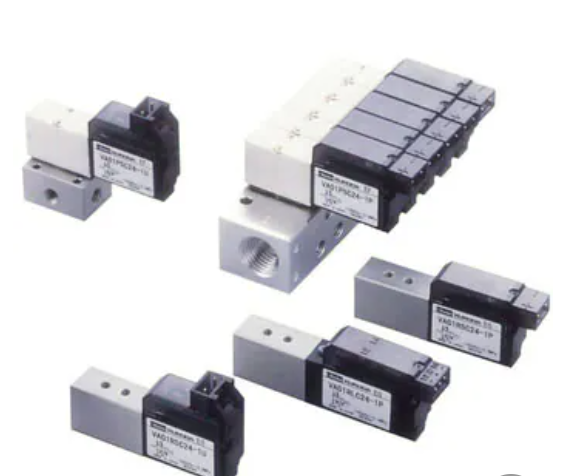

日本黑田直通电磁阀VA01HRSC24-1P
Technical Specifications
Wiring:Without connector and lead wire (Side outlet)-NPN Type
Valve Configuration Type:Single solenoid (High speed response type)
Mounting Option:In-line
Options:Vacuum/Positive pressure
Function:4/2 Single
For Fluid Type:Air
Maximum Operating Temperature:40 to 50 °C
Maximum Flow Rate:80 to 120 L/min
Configuration:N/A
Minimum Operating Temperature:-18 to 0 °C
Mounting Type:Free
Actuation Type:Pneumatic
Maximum Operating Pressure:7 to 10 bar
Function:2 Position 4-Way
Body Material:Synthetic Resin
Seal Material:Nitrile (NBR)
Media:Non-lubricated air
Port Size:M3
Flow Rate:0.05 Cv
Operating Temperature:-5 to 50 °C
Pressure Rating:-100kPa to 0.8MPa
Response Time:ON/OFF 3/1.5 ms
Override Functionality:Non-lock type push button
Mounting Position:Free
Vibration Resistance:150/30 m/sec2
Weight:26.3 g
Input Voltage:24 VDC
Power Consumption:4 W
Insulation:JIS grade B
Valve Option:Direct Acting Pneumatic Valve
