日本nitta高压软管接头C2N1/4-PT1/8
发布时间：2024-08-21
日本nitta高压软管接头C2N1/4-PT1/8

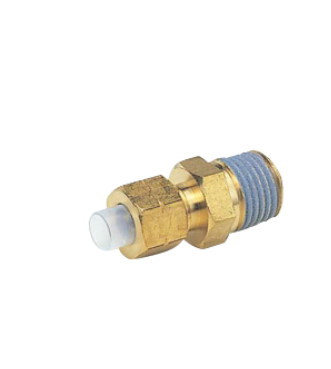

Connector (C2N1/4-PT1/8)
Straight, Quick Seal, Insert Type, Brass, C1N Series
Part Number: C2N1/4-PT1/8
A 3-point brass connector (inch sized) with integrated body, nut, and sleeve. The fitting body and insert are integrated. Provides excellent performance at negative pressures.
Configured Specifications
Download
| Connection Type | Screw⇔Tube Connection | Tube Size 1(mm) | 6.35 |
|---|---|---|---|
| Thread-to-Tube Connection Shape | [Male Straight] Connector (Male Thread) | Thread Size 1 | 1/8 |
| Material | Brass | Thread Types | R |
| Surface Treatment | No | Minimum Internal Diameter d2 | 2.2 |
| Effective Sectional Area | 3.5 | Applicable Tube O.D.(inch) | 1/4 |
