日本HAKKO八兴涂料管E-SJ-4*6-BK-100M 黑色

Flexible Fluorine (ETFE) Resin Tubing Black [Model Number: E-SJ-BK]

Multi-Purpose | Chemical Resistance Tube | For customers who transfer UV inks, UV-based paints which become harden inside the tube or who have trouble in changing ink viscosity.

 Fluids

chemicals

flux

UVpaint

UVink

 Applications

• For Industrial Ink-Jet Printers (For UV Ink Supplying Pipes)

• For Transferring UV-based Paints and Solvents of the Painting Equipment

• For Transferring UV-curable Inks

• For Transferring Chemicals used in Laboratory Equipment

• For Transferring Chemicals used in Semiconductor-Related Devices and Flat-Panel Display (FPD) Manufacturing Devices

• For Pipe for Printing Head

• For Filling Line of UV Paints and UV-based Adhesives

 Functions

Solvent Resistance

Non-PVC

Non-Adhesiveness

Chemical Resistance

Low Elution

Flexibility

UV Cut

Oil-Proof

Cold Resistance

Alcohol Resistance

 Characteristics

• UV Cut...By shielding ultraviolet, E-SJ-BK is suitable for transferring UV-based paints, adhesives and inks.

• Chemical Resistance...Since the inner layer is made of ETFE fluorine resin, E-SJ-BK is resistant to most of the chemical substances. For more information, please refer to chemical resistance data.

• Flexibility...Due to the laminated structure, compared with a single-layer fluorine tubing, E-SJ-BK is superior in flexibility. This improves your work efficiency.

• Hard to Break...Unlike a single-layer fluorine tubing, E-SJ-BK is hard to break. (Even if it breaks, you can restore its shape to some extent.)

• Higher Non-Adhesiveness...Since ETFE fluorine resin is superior in terms of water-proof, you can wash out the fluids very easily.

• Plasticizer-Free...E-SJ-BK does not contain plasticizer (an elution material) at all. E-SJ-BK is an oil-free tubing.

• Non-PVC...E-SJ-BK is made of a non-PVC material.

• High Purity...Fluorine resin does not contain any additives such as plasticizer, so E-SJ-BK is suitable for transferring high purity chemical fluids.

• Easy to Cut...Since we print the cut mark on the hose every meter, it is easy to cut the length you would like to.

• Original Fittings...By using our original fittings, you can avoid accidents which are caused by incorrect choices of hose and fittings. For more information on our original fittings, please scroll down to the end.

 Certificates and Regulations

• RoHS Compliant...E-SJ-BK is compliant with RoHS requirements (Directive: (EU) 2015/863). (RoHS Compliant means that E-SJ-BK does not contain RoHS 10 restricted substances or it does not exceed the upper threshold of RoHS 10 restricted substances.) Certificate is available on request.

• EU REACH and UK REACH...E-SJ-BK is compliant with REACH SVHC 25th list (219 substances). Certificate is available on request.

• Non-Use of UV-328...E-SJ-BK does not contain UV-328. Certificate is available on request.

• TSCA (Toxic Substance Control Act) Compliance...E-SJ-BK does not use decaBDE, PIP(3:1), 2,4,6-TTBT, PCTP and HCBD. Certificate is available on request.

• UL94HB Equivalent...According to the third-party institution test, E-SJ-BK is confirmed as equivalent to UL94HB (Flame Retardancy Test UL94HB Horizontal Combustion Test). Certificate is available on this webpage.

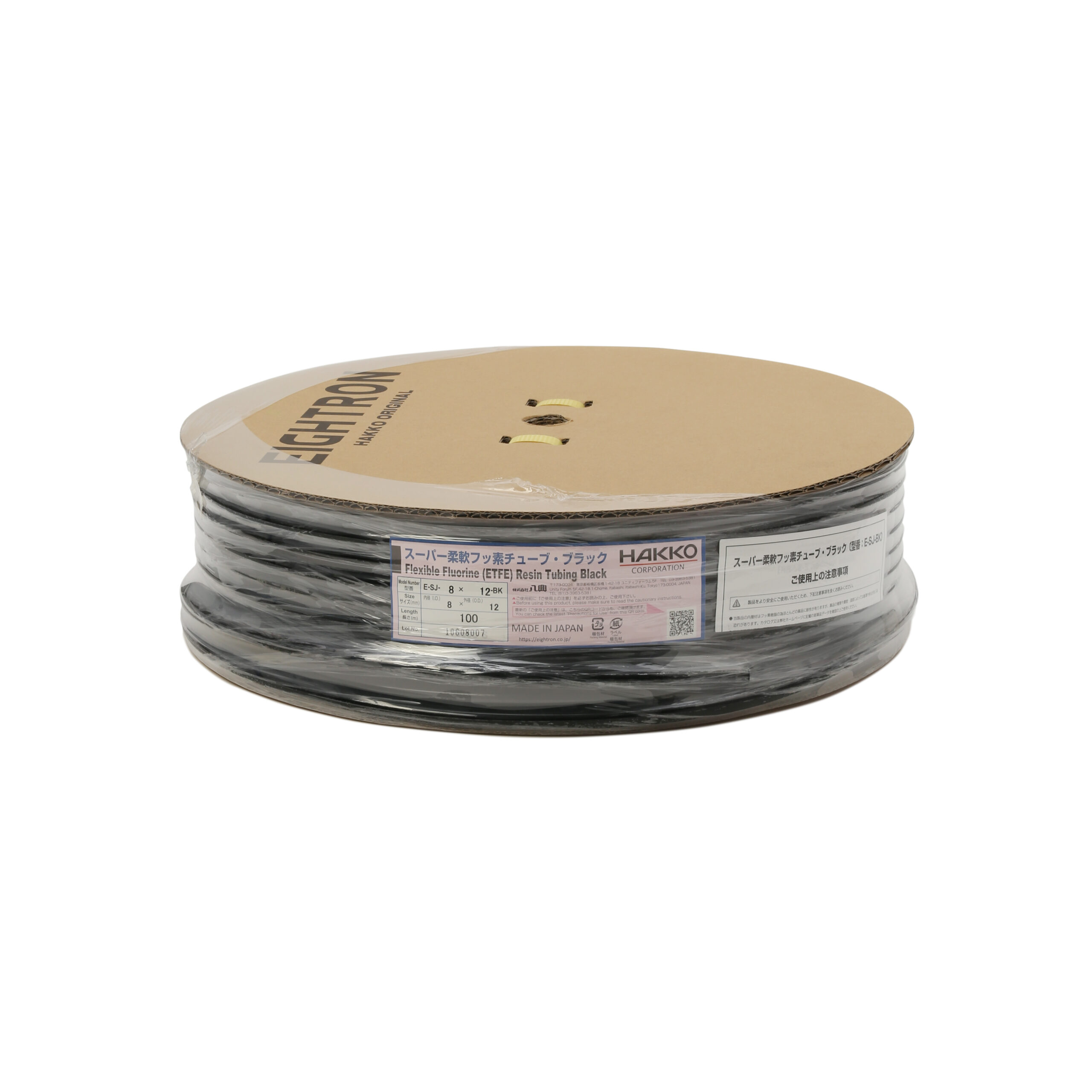

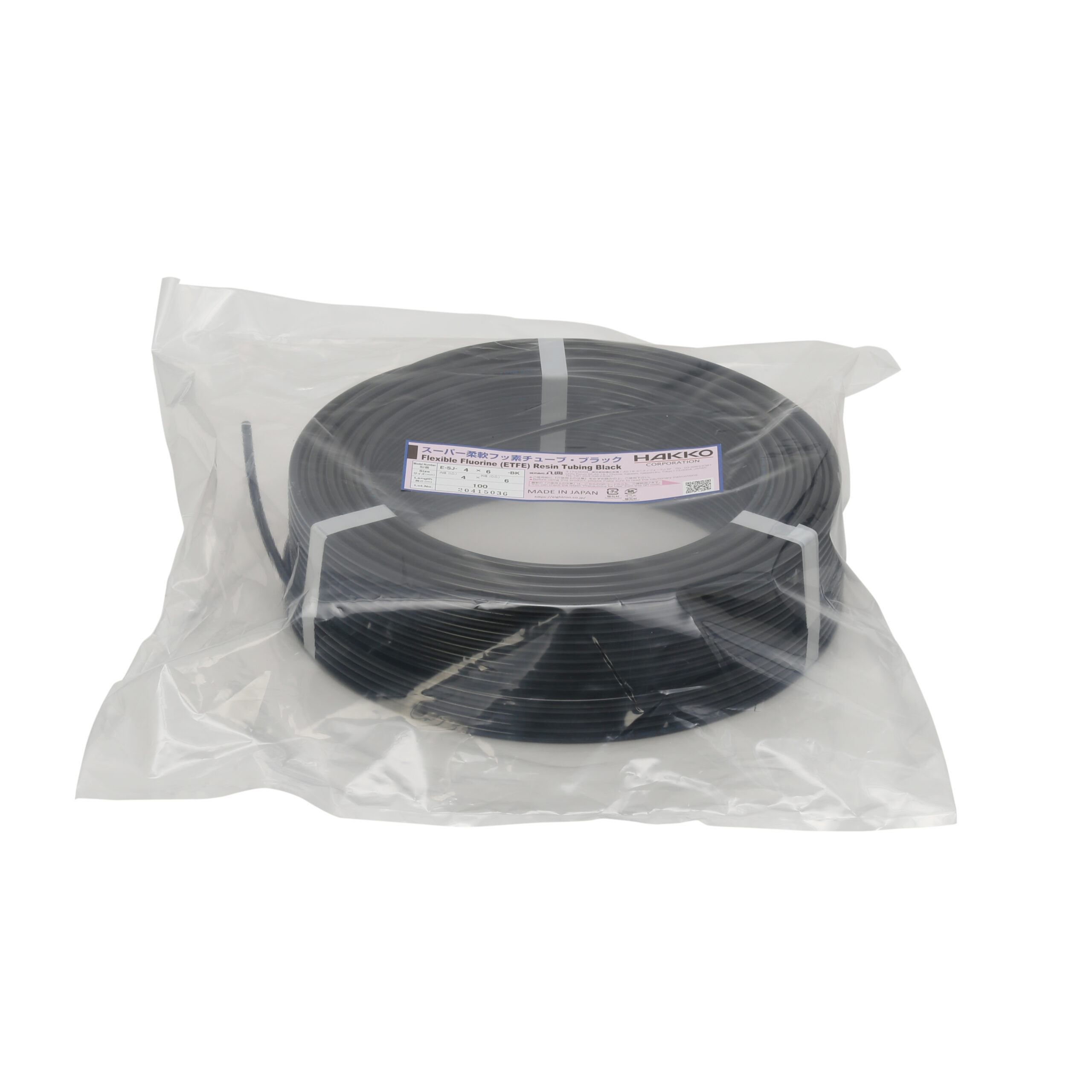

 Packing Images
