日本TECLOCK得乐硬度计GSDG-A/GS-719N
发布时间：2024-08-22

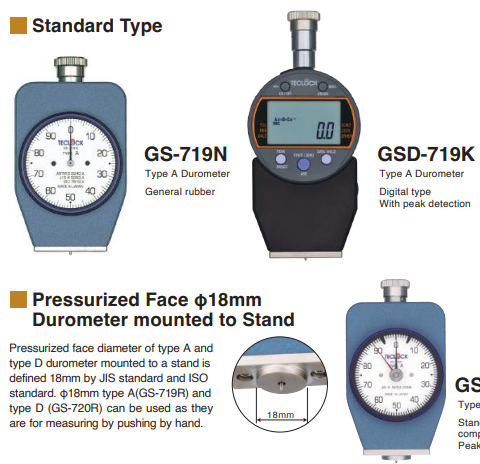

日本TECLOCK得乐硬度计GSDG-A/GS-719N
Part Number: GS-719N
Features
· JIS K 6253 compliant durometer (hardness tester), the most frequently used durometer for general rubber.
· Standard type.
· Conforms with standards as follows: JIS K 6253 (Type A), ISO 7619, ISO 868 and ASTM D 2240 (US standard).
Applications
· Applicable materials: Rubber, tires, rubber hoses, soft plastic, etc.
Configured Specifications
Download
| Compatible Material | Rubber / Tire / rubber hose / Flexible Plastic | Product Model | Dial |
|---|---|---|---|
| Spring Load Value(mN) | 550～8050 | Measuring Range(°) | 0–100 |
| Minimum graduation(°) | 1 | Width(mm) | 60 |
| Depth(mm) | 23.5 | Height(mm) | 107.7 |
| Trusco Code | 103-0230 | Mass(g) | 200 |
| Indenter shape | 35° Conical Trapezoid | Feature | JIS K6253 compliant durometer (hardness tester), the most frequently used durometer for general rubber. |
