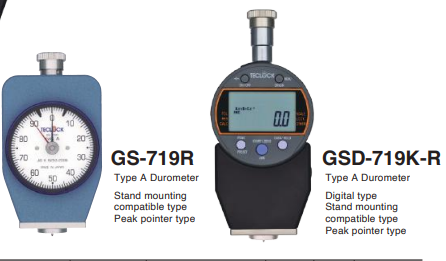

日本TECLOCK得乐硬度计GSD-719K-R/GSD-720K-R
发布时间：2024-08-22
日本TECLOCK得乐硬度计GSD-719K-R/GSD-720K-R
日本TECLOCK得乐硬度计GSD-719K-R/GSD-720K-R
日本TECLOCK得乐硬度计GSD-719K-R/GSD-720K-R
日本TECLOCK得乐硬度计GSD-719K-R/GSD-720K-R
日本TECLOCK得乐硬度计GSD-719K-R/GSD-720K-R
Rubber Durometer
Part Number: GS-721N
Features
· Used for devices that measure the hardness of soft rubber, etc.
· Ideal for measuring softer materials than the usual.
· Conforms with JIS K 6253 (Type E) standard.
Applications
· Applicable materials: Soft rubber, film rolls, spinning rolls, etc.
Configured Specifications
Download
| Compatible Material | Soft Rubber / Film Roll / Spinning roll | Product Model | Dial |
|---|---|---|---|
| Spring Load Value(mN) | 550～8050 | Measuring Range(°) | 0–100 |
| Minimum graduation(°) | 1 | Width(mm) | 60 |
| Depth(mm) | 23.5 | Height(mm) | 107.7 |
| Trusco Code | 331-3972 | Mass(g) | 200 |
| Indenter shape | Hemisphere 2.5 mm | Feature | Used for devices that measure the hardness of soft rubber etc. |
