日本NAC长掘快速接头CAL23PA
发布时间：2024-08-23
日本NAC长掘快速接头CAL23PA

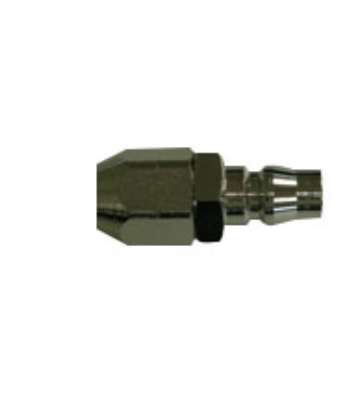

Quick Coupler (CAL23PA)
AL Type 20, Plug PA-PB
Part Number: CAL23PA
A variety of shapes, sizes, and materials for different mounting conditions and specifications are available. Supports various applications, such as connections to air piping in factories, pneumatic tools, etc. Also has excellent socket and plug compatibility
[Features]
• Specifications are identical to the AL type 20 model.
• The steel main body is chrome-plated.
• Plug can be connected with all AL Type 20 models.
Configured Specifications
Download
| Type | Standard | Body Material | [Steel] Steel (chrome plating) |
|---|---|---|---|
| Adhesive Material | Nitrile Rubber (NBR) | Compatible Fluid | Air / Oil |
| Male/Female | Plug | Valve Structure | Single Passage Opening/Closing |
| Mount Type | For Polyurethane Tubes | Operating Environment Application | Standard / Industrial Machinery |
| Operating Temperature Range(°C) | -20～+80 | Max. Operating Pressure(MPa) | 0～1.5 |
| Applicable Hose | 12×8 | - | - |
