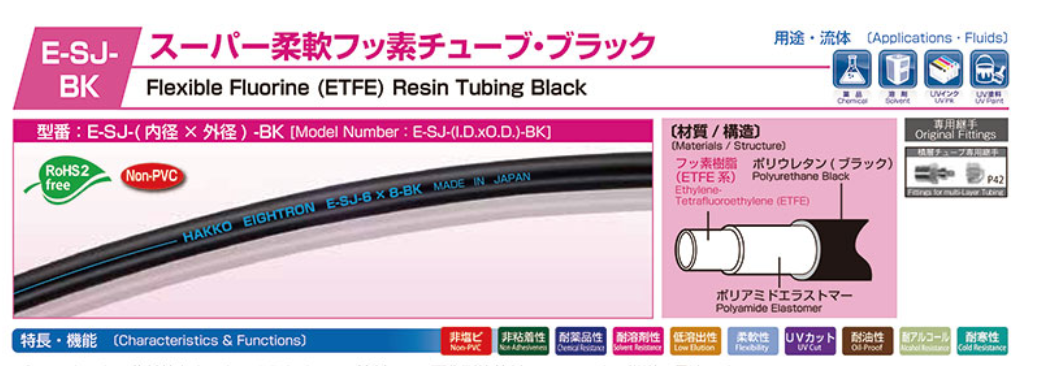

日本HAKKO八兴软管E-SJ-3X5-BK-L1/E-SJ-4X6-BK-L1

Model Number	Standard Length	I.D. $\times$ O.D.	Working Pressure	Working Pressure	Minimum Bend Radius
			20 $^{\circ}$ C	20 $^{\circ}$ C	20 $^{\circ}$ C
	m	mm	MPa	Bar	mm
E-SJ-2 $\times$ 4-BK	20	2 $\times$ 4	0 - 0.6	0 - 6	15
	100
E-SJ-3 $\times$ 5-BK	20	3 $\times$ 5			20
	100
E-SJ-4 $\times$ 6-BK	20	4 $\times$ 6			25
	100
E-SJ-4.3 $\times$ 6.4-BK	20	4.3 $\times$ 6.4			30
	100
E-SJ-5 $\times$ 7-BK	20	5 $\times$ 7	0 - 0.5	0 - 5	40
	100
E-SJ-6 $\times$ 8-BK	20	6 $\times$ 8	0 - 0.4	0 - 4	50
	100
E-SJ-8 $\times$ 10-BK	20	8 $\times$ 10	0 - 0.4	0 - 4	90
	100
E-SJ-8 $\times$ 12-BK	20	8 $\times$ 12	0 - 0.6	0 - 6	50
	100

Standard Size (inch size)

Model Number	Standard Length	I.D. $\times$ O.D.	Working Pressure	Working Pressure	Minimum Bend Radius
			20 $^{\circ}$ C	20 $^{\circ}$ C	20 $^{\circ}$ C
	m	mm	MPa	Bar	mm
E-SJ-1/8" $\times$ 1/4"-BK	20	3.18 $\times$ 6.35	0 - 0.6	0 - 6	20
	100
E-SJ-3/16" $\times$ 1/4"-BK	20	4.76 $\times$ 6.35	0 - 0.5	0 - 5	45
	100
E-SJ-1/4" $\times$ 3/8"-BK	20	6.35 $\times$ 9.53	0 - 0.6	0 - 6	45
	100

Made-to-Order Size Example

Model Number	I.D. $\times$ O.D.	Working Pressure	Working Pressure	Minimum Bend Radius
	I.D. $\times$ O.D.	20 $^{\circ}$ C	20 $^{\circ}$ C	20 $^{\circ}$ C
	mm	MPa	Bar	mm
SJ-1 $\times$ 3-BK	1 $\times$ 3	0 - 1.0	0 - 10	10
SJ-1.5 $\times$ 3-BK	1.5 $\times$ 3	0 - 0.6	0 - 6	10
SJ-2.5 $\times$ 4-BK	2.5 $\times$ 4	0 - 0.6	0 - 6	25
SJ-3 $\times$ 4-BK	3 $\times$ 4	0 - 0.6	0 - 6	30
SJ-5 $\times$ 8-BK	5 $\times$ 8	0 - 0.6	0 - 6	30
SJ-7 $\times$ 10-BK	7 $\times$ 10	0 - 0.4	0 - 4	50
SJ-9 $\times$ 12-BK	9 $\times$ 12	0 - 0.5	0 - 5	65
SJ-1/16" $\times$ 1/8"-BK	1.59 $\times$ 3.18	0 - 0.6	0 - 6	10
SJ-3/32" $\times$ 5/32"-BK	2.38 $\times$ 3.97	0 - 0.3	0 - 3	25
SJ-3/16" $\times$ 5/16"-BK	4.76 $\times$ 7.94	0 - 0.5	0 - 5	30
SJ-3/8" $\times$ 1/2"-BK	9.53 $\times$ 12.7	0 - 0.4	0 - 4	70

Temperature Range : -20 - 80
$^{\circ}$
C (-4
$^{\circ}$
F - 176
$^{\circ}$
F)
Color : Black

*Please note that the value of "Minimum Bend Radius" is NOT equal to that of "Flexibility." About "Flexibility," please refer to the value of "Amount of Deflection" in the section of Technical Information or request the sample.

*If you are interested in Made-to-Order size, please fill out the following form. (We can also produce a special size that is not listed on the table above. Please note that MOQ applies for made-to-order size.)
