日本大昭和BIG铣刀夹头BBT40-HMC32S-105
Technical data
Abb.:2
Ød:32
ØD:68
L:105
L1:-
E:60
E1:64
H :79 - 89
Weight (kg):2.26
Wrench:FK68-75L
Adjusting Screw:HMA-M16S
BIG-PLUS® tools can be used in machining centers with non BIG-PLUS® spindles.
Wrench and axial adjusting screw are to be ordered separately.
* As a back stop for cutting tools for the HMC16S models, a commercially available hex socket head screw (M8) can be used.

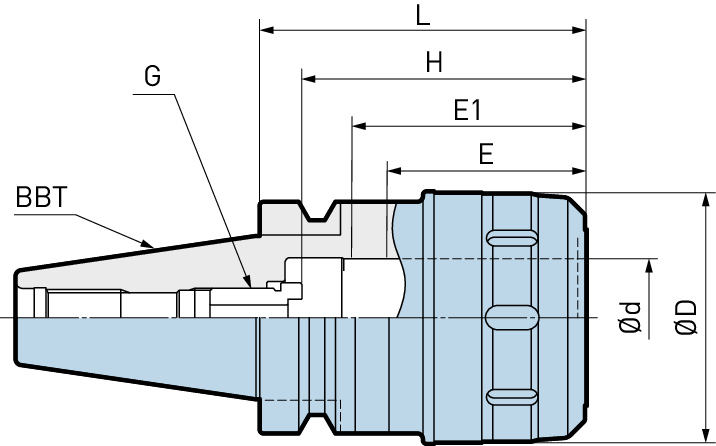

“H” is the max. tool shank length that can be inserted for these models.
“G” is the adjusting screw (optional).
“E” is the min. clamping length.
“E1” is the min. clamping length for optimum use with center through coolant.

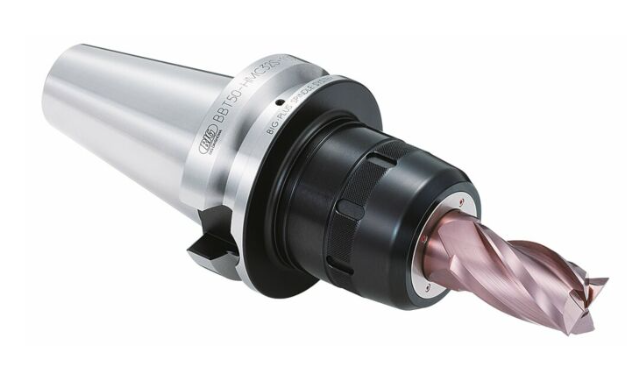

New Hi-Power Milling Chuck Type S BBT
The original design assures heavy machining with high power and precision.
