日本BIG大昭和高精密筒夹NBC16-12AA/NBC10-4AA
发布时间:2024-08-31

日本BIG大昭和高精密筒夹NBC16-12AA/NBC10-4AA


Collets (NBC16-14.0-AA)

New Baby Collet, High Precision, MEGA13N/16N/20N

Part Number: NBC16-14.0-AA

[Features]·Demonstrates outstanding power at ultra-high speed rotation. [Specifications]·For Mega New Baby Chuck / New Baby Chuck

Configured Specifications



Product CategoryAttachments/AccessoriesRetainable blade diameter(mm)13.5~14.0
Dimension B(mm)35φA(mm)25.5
Maximum Gripping Diameter(mm)14Compatible Main Body Size(mm)16
Compatible Baby ChuckMEGA16N/NBS16Shrinkage allowance(φ)0.5
FeatureThe world-class runout accuracy of 1 μm at the nose demonstrates an outstanding power even at super high speed rotation.SpecificationFor Mega New Baby Chuck / New Baby Chuck
Runout accuracy (nose)Within 1 μmRunout accuracy (4D edge)Within 3 µm
ClassAA--

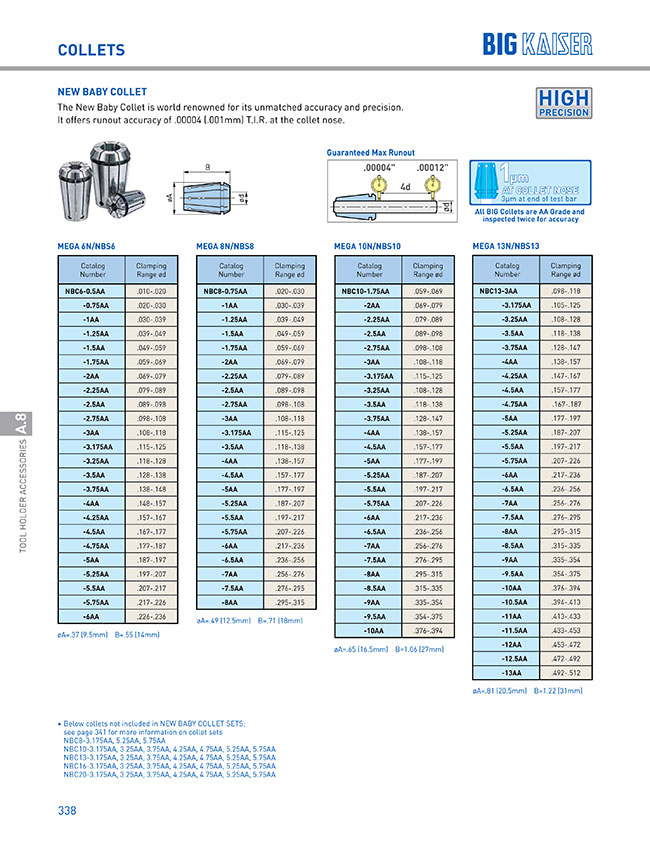

Catalog
