日本KAMO加茂摆线凸轮齿轮CRA2510A-2BF-L1000

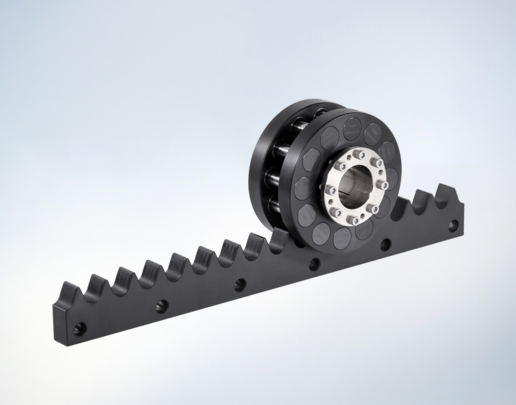

TCGランナー CRA&CPA/CRC&CPCシリーズ

TCGランナーは、噛合うピニオンのローラとラック歯面との転がり接触により軽快な回転－直線の運動伝達を実現します。

本機構では予圧調整により噛合い部のバックラッシを無くすことができ、

転がりの接触は金属同士のぶつかり合いによる消耗を極力抑えますので低摩耗・低発塵でありメンテナンス性が良好です。

また専用の継ぎ足し治具をご使用いただくことで高精度でラック継ぎ足しが可能ですので長尺での使用が容易に実現できます。

Highlights

Zero-Backlash

The teeth always mesh via two or three portions and eliminate backlash when rotated in one or another direction.

Extended length line and high speed driving

Extendable with use of the connection jig “CJ”. And, capable of high speed driving of 180 m/min or more.

High Accuracy

The combination of cam gear and roller pinion makes a positioning accuracy and feeding accuracy (rotation-linearity ratio) as nearly as the ball-screw.

Low noise, Low vibration

Rollers of Pinion supported by bearings roll smoothly on the trochoid gear. Thereby tooth striking noise, rotating noise and also vibration are reduced.

Low dust

Due to the smooth rotation, the structure dispenses with a least amount of heat and dust generated and cope with a clean room operation.

No need for applying the lubricant

Combined with the TCG lubrication supply system TLS, No need for applying the lubricant, completely maintenance-free are realized.
