日本RIKEN理研传感器测头RS-223H/RS-233H
Sensors
Sensor SeriesProximity sensor
*All dimension drawings of the series can be downloaded together. If you use CAD data, we will accept it by email. You can download the external dimensions of each product. ■Custom-made sensor cables are also available. ■ Relay cables are also available in various lengths. Due to product improvements, some specifications may change without prior notice.
Characteristics

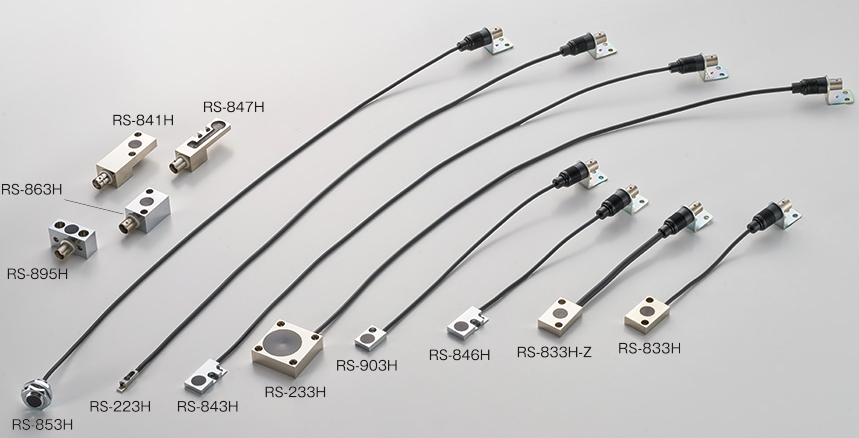

*Select “Right click=Save the object into file” to save the data in a file.Model External Dimensions Model used Features RS−223H RS−223H(145kb) RM-2305／RM-2505
RM-7302／RM-7304
RM-2412／RM-2414Micro/wire length 500 mm RS−233H RS−233H(148kb) Large/wire length 500 mm RS−833H RS−833H(148kb) RM-6302 (Overseas only)
RM-1310
RM-2305／RM-2505
RM-7302／RM-7304
RM-2412／RM-2414Standard type/Line length 100 mm
*Product accessoriesRS−833H−Z RS−833H-Z(104kb) RS-833H Same shape/Cable diameter Φ5.3 RS−841H RS−841H(86kb) RM-2305／RM-2505
RM-7302／RM-7304
RM-2412／RM-2414L type/without cable RS−843H RS−843H(147kb) Thin/wire length 500 mm RS−846H RS−846H(148kb) Thin/wire length 130mm RS−847H RS−847H(86kb) L type/without cable/Thin RS−853H RS−853H(106kb) Round/wire length 500 mm RS−863H RS−863H(85kb) Embedding type RS−895H RS−895H(85kb) Without cable RS−903H RS−903H(104kb) Small and Thin/wire length 200mm Model Features Remarks RS−833C 3m Cable RS−835C 5m Cable Standard relay cable is included with the product. RS−836C 6m Cable RS−837C 7m Cable RS−838C 8m Cable RS−83AC 10m Cable
