日本RIKEN理研废料探测器RM-6302/RM-1310

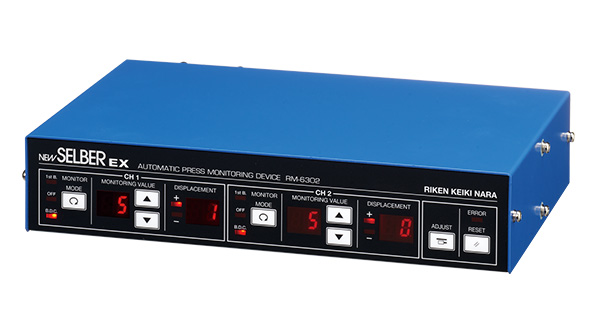

NEW SELBER EXRM-6302 (Overseas only)
If you use CAD data, we will accept it by email. ● Highly accurate detection is possible by applying eddy current displacement sensor technology. ● Equipped with the First Bound Detection function, it can be used for molds with a stripper. ● The sensors are compatible. There is no need for replacement. ● No timing input is required, and it automatically monitors when the target object approaches the sensor at a certain distance. ● Easy to operate and can follow 2500spm. *The specifications and the contents described in this instruction manual are subject to change without prior notice.
Characteristics
Specifications
Name NEW SELBER EX Model RM-6302 Detection resolution 0.5μm Input 3 points, non-voltage NPN open collector output or contact input Output Relay contact output (C contact) NC-C-NO AC250V 2A Max. (Resistive load) Maximum number of rotations that can be monitored 2500spm Operating Temperature Limit 0-50℃ (No Condensation) Ambient atmosphere when used Free from corrosive gas and dust Power supply AC100V-240V 50/60Hz Weight Main Unit: Approx. 1.1kg External Dimensions 230 (W) x 46 (H) x 144 (D) mm (excluding terminal block and other protrusions)
Catalog download
