日本松下PANASONIC光电传感器EX-11EB-PN
发布时间：2024-09-05

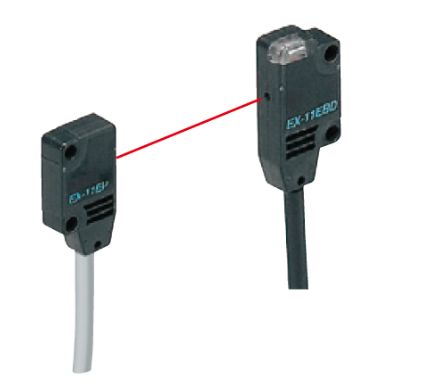

日本松下PANASONIC光电传感器EX-11EB-PN
Product Number | EX-11EB-PN |
|---|---|
Part Number | EX-11EB-PN |
Product | Ultra-slim Photoelectric Sensor |
Details | Thru-beam [Side sensing] |
*Specifications and design of the products are subject to change without notice for the product improvement.
Spec Detail
Specifications and design of the products are subject to change without notice for the product improvement.
| Item | Specifications |
|---|---|
| Product Number | EX-11EB-PN |
| Part Number | EX-11EB-PN |
| Products Name | Ultra-slim Photoelectric Sensor |
| Product details | Thru-beam [Side sensing] |
| The price of the product | Please contact our office |
| Applicable regulations | ・EMC Directive ： EN 60947-5-2 ・RoHS Directive ・ISO 13849-1 (Category 1, PLc) (Note) (Note) : Conformed from December 2021 production. |
| Certification | UL certification |
| Sensing range | 150 mm 5.906 in |
| Min. sensing object | ø1 mm ø0.039 in opaque object (Completely beam interrupted object) (Setting distance between emitter and receiver: 150 mm 5.906 in) |
| Hysteresis | - |
| Repeatability(perpendicular to sensing axis) | 0.05 mm 0.002 in or less |
| Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Current consumption | Emitter: 10 mA or less Receiver: 10 mA or less |
| Output | PNP open-collector transistor - Maximum source current: 50 mA - Applied voltage: 30 V DC or less (between output and +V) - Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current) |
| Output:Utilization category | DC-12 or DC-13 |
| Output:Short-circuit protection | Incorporated |
| Response time | 0.5 ms or less |
| Operation indicator | Orange LED (lights up when the output is ON) |
| Incident beam indicator | - |
| Stability indicator | Green LED (lights up under stable light received condition or stable dark condition) |
| Pollution degree | 3 (Industrial environment) |
| Protection | IP67 (IEC) |
| Ambient temperature | -25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +70 ℃ -22 to +158 ℉ |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Insulation resistance | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Vibration resistance | 10 to 500 Hz frequency, 3 mm 0.118 in double amplitude (20 G max.) in X, Y and Z directions for two hours each |
| Shock resistance | 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each |
| Emitting element | Red LED (Peak emission wavelength: 680 nm 0.027 mil, modulated) |
| Material | Enclosure: Polyarylate Lens: Polyarylate |
| Cable | 0.1 mm2 3-core (emitter: 2-core) cabtyre cable, 2 m 6.562 ft long |
| Cable extension | Extension up to total 50 m 164 ft is possible with 0.3 mm2, or more, cable (emitter and receiver). (Note) : For safety applications, do not exceed 30 m 98.425 ft. |
| Weight | Net weight (each emitter and receiver): 20 g approx Gross weight: 50 g approx |
| Accessory | Mounting screws: 1 set |
