德国FAULAHABER直流电机2237U024CXR22GPT 59:1
发布时间：2024-12-25
德国FAULAHABER直流电机2237U024CXR22GPT 59:1
德国FAULAHABER直流电机2237U024CXR22GPT 59:1

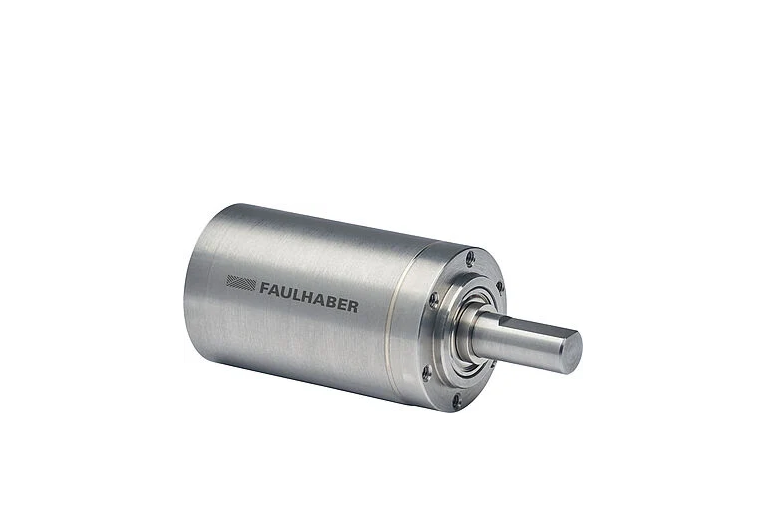

Planetary GearheadsSeries 22GPT
High Torque
Key Features
Number of gear stages:
1 ... 4
Torque up to:
1.8 Nm
Intermittent torque up to:
2.5 Nm
Reduction ratio:
3 ... 1294
Diameter:
22 mm
Length:
18.1 ... 37.2 mm
Advantages
COMPACT LENGTH
HIGH CONTINUOUS TORQUE
VERY ROBUST FOR INTERMITTENT OR IMPULSIVE CYCLES
HIGH INTERMITTENT SPEED UP TO 20,000 MIN-1
REDUCED BACKLASH
MANY REDUCTION RATIOS
LARGE SELECTION OF MOTOR COMBINATIONS
MANY STANDARD OPTIONS
