台湾微端Microtips液晶屏触摸屏NMTC-S16205DFGHSAY-07
General SpecificationsOperating Temperature. : Min. -20°C 〜 Max. 70°
CStorage Temperature. : Min. -30°C 〜 Max. 80°C
Display Format : 16 characters x 2 lines
Display Fonts : 5 x 7 dots + cursor (1 character)
Viewing Area : 69.0 (W) x 16.4 (H) mm
Outline Dimensions : 80.0 (W) x 36.0 (H) x 12.9 max. (D) mm
Weight : N/A
LCD Type : STN / Positive, Gray mode / Transflective
Viewing Direction : 6:00
Backlight : Array type LED (Yellow Green)
LCD LSI : ST 7066

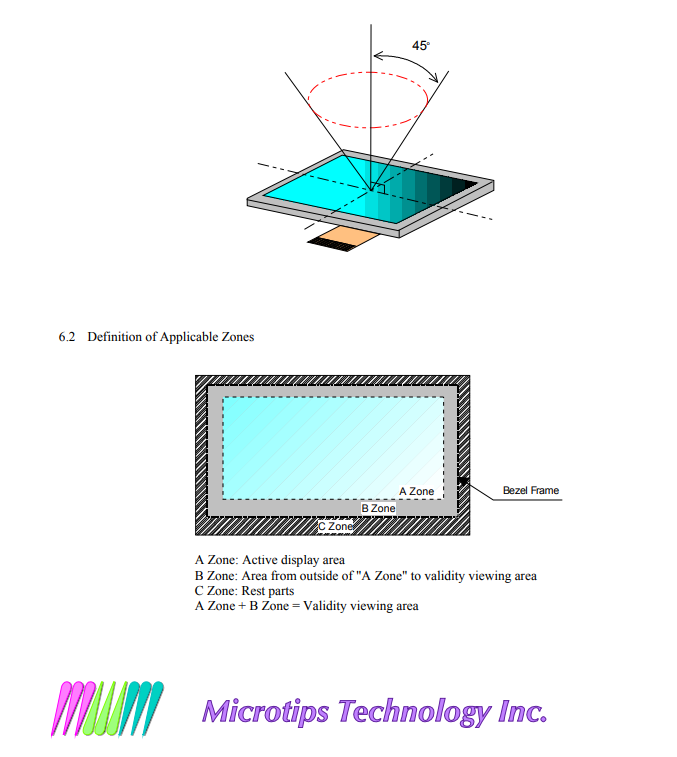

Drawings : As attached drawings
