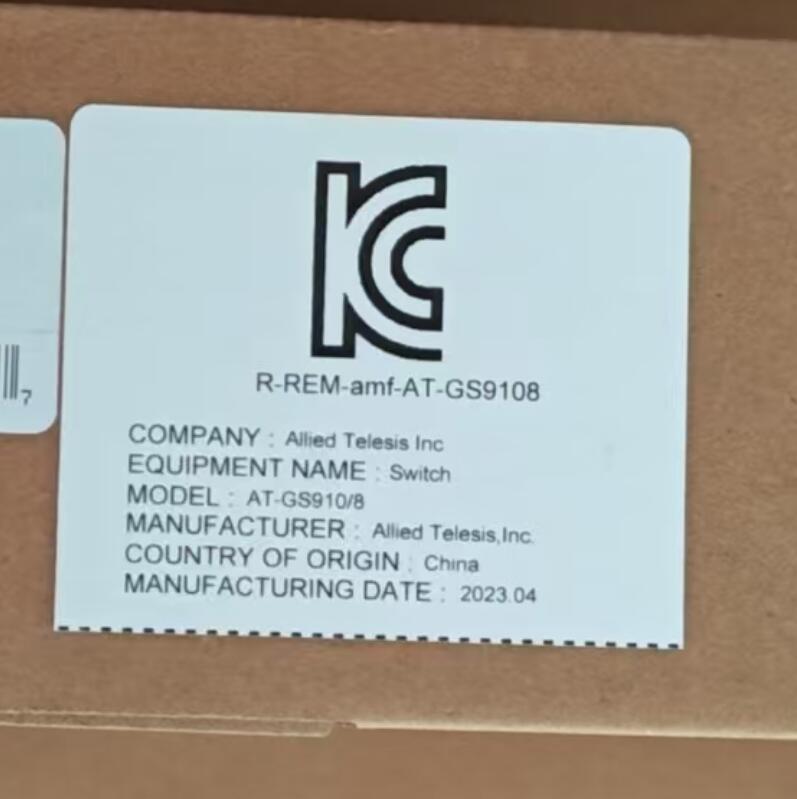

Allied安奈特网络交换机AT-GS910/8

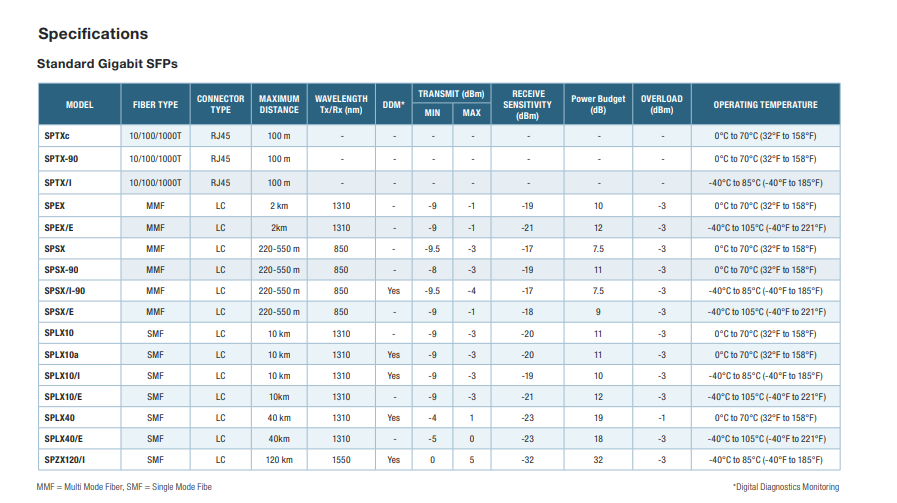

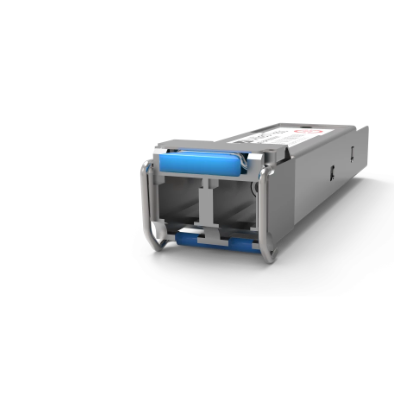

SP SeriesGigabit Small Form-Factor Pluggable ModulesTransceiver Modules | Product Informationۼ Fiber and copper solutionsۼ Compact sizeۼ Flexible architectureۼ Plug and play for ease of useۼ Self-locking mechanismۼ MSA-compliantۼ Two year warranty*ۼ Operating Humidity: 0 to 85%non-condensing* Warranties may be region-specific. For local warranty periods,please visit alliedtelesis.com/support, or contact yourlocal sales office.Key FeaturesThe Allied Telesis SP Series delivers flexible, full-duplex Ethernet connectivity.These hot-swappable fiber and copper interfaces simply plug into the SFPslot on all SFP-compatible devices. Configuration can be optimized to meet awide variety of distance and service requirements.CompatibilityAllied Telesis SP Series SmallForm-Factor Pluggables (SFPs) aresupported on Allied Telesis deviceswith SFP uplink connections*.SP Series SFPs are Multi-SourcingAgreement (MSA)-compliant, and fullyadhere to industry standard networkingregulations. This allows the SP Seriesto be used with other MSA-compliantplatforms that support SFP uplinkconnections.For Cisco compatibility please refer tothe “SFP Compatibility Flyer”.OptionsSP Series SFPs offer short-haul, longhaul and Bi-Directional (BiDi) solutions.This flexibility allows network managersto easily extend network distance andbandwidth.Using an SFP BiDi transceiver canupgrade transmission capacity on atypical network—without installing newfibers—by utilizing a single fiber forboth the send and receive signals.Multiple temperature rangesDifferent network environments callfor a variety of temperature ranges.The SP Series is available in standard(0-70°C), industrial (-40 to 85°C), andextended (-40 to 105°C) temperaturevariants.MODEL FIBER TYPE CONNECTORTYPEMAXIMUMDISTANCEWAVELENGTHTx/Rx (nm) DDM*TRANSMIT (dBm) RECEIVESENSITIVITY(dBm)Power Budget(dB)OVERLOAD(dBm) OPERATING TEMPERATURE MIN MAXSPTXc 10/100/1000T RJ45 100 m - - - - - - - 0°C to 70°C (32°F to 158°F)SPTX-90 10/100/1000T RJ45 100 m - - - - - - - 0°C to 70°C (32°F to 158°F)SPTX/I 10/100/1000T RJ45 100 m - - - - - - - -40°C to 85°C (-40°F to 185°F)SPEX MMF LC 2 km 1310 - -9 -1 -19 10 -3 0°C to 70°C (32°F to 158°F)SPEX/E MMF LC 2km 1310 - -9 -1 -21 12 -3 -40°C to 105°C (-40°F to 221°F)SPSX MMF LC 220-550 m 850 - -9.5 -3 -17 7.5 -3 0°C to 70°C (32°F to 158°F)SPSX-90 MMF LC 220-550 m 850 - -8 -3 -19 11 -3 0°C to 70°C (32°F to 158°F)SPSX/I-90 MMF LC 220-550 m 850 Yes -9.5 -4 -17 7.5 -3 -40°C to 85°C (-40°F to 185°F)SPSX/E MMF LC 220-550 m 850 - -9 -1 -18 9 -3 -40°C to 105°C (-40°F to 221°F)SPLX10 SMF LC 10 km 1310 - -9 -3 -20 11 -3 0°C to 70°C (32°F to 158°F)SPLX10a SMF LC 10 km 1310 Yes -9 -3 -20 11 -3 0°C to 70°C (32°F to 158°F)SPLX10/I SMF LC 10 km 1310 Yes -9 -3 -19 10 -3 -40°C to 85°C (-40°F to 185°F)SPLX10/E SMF LC 10km 1310 - -9 -3 -21 12 -3 -40°C to 105°C (-40°F to 221°F)SPLX40 SMF LC 40 km 1310 Yes -4 1 -23 19 -1 0°C to 70°C (32°F to 158°F)SPLX40/E SMF LC 40km 1310 - -5 0 -23 18 -3 -40°C to 105°C (-40°F to 221°F)SPZX120/I SMF LC 120 km 1550 Yes 0 5 -32 32 -3 -40°C to 85°C (-40°F to 185°F)SpecificationsStandard Gigabit SFPsMMF = Multi Mode Fiber, SMF = Single Mode Fibe *Digital Diagnostics Monitoring617-000592 RevQ*Please see individual product datasheet for SFP’s supported bythat product.
